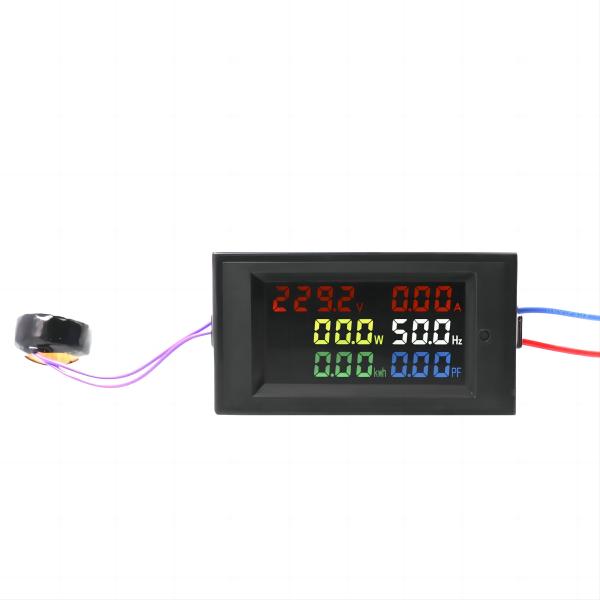

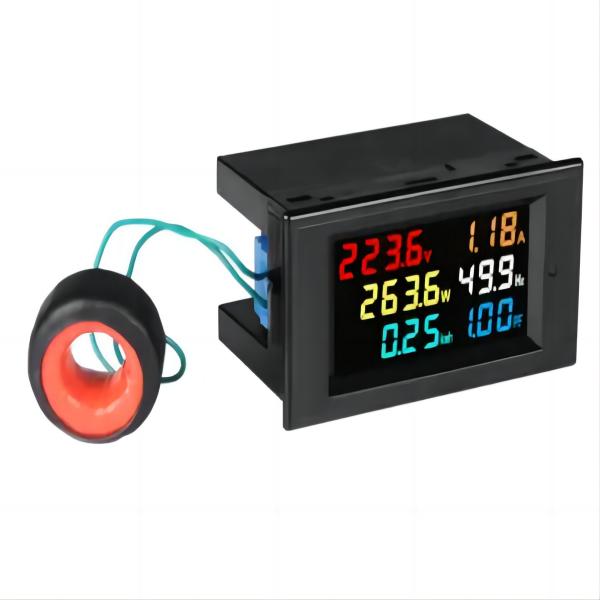

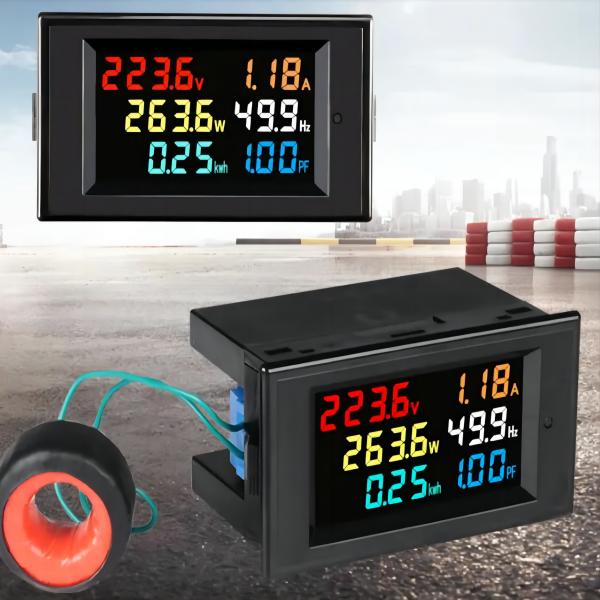

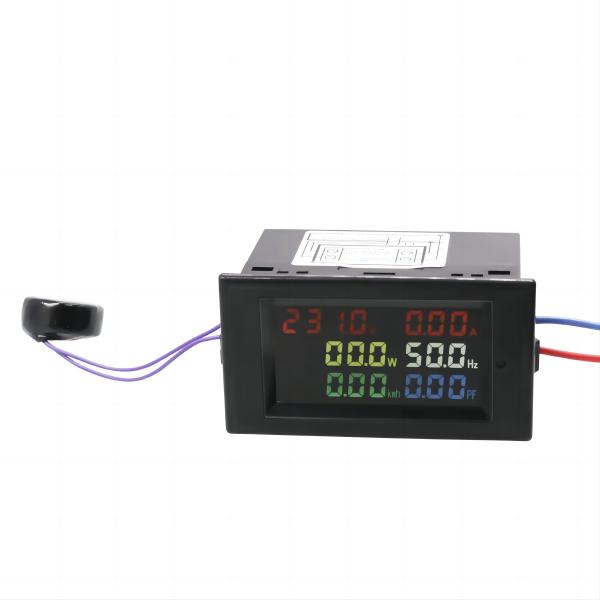

ManHua MD69-2058 Digital Display Meter Measurement Display Digital Panel AC Voltage And Ammeter Active Power Electric Energy

1. Accuracy: 1% 2 words

2. Range:

AC voltage: AC voltage: ac 80.0-300.0 V/200.0-450.0 V (you must select the right type of Meter when placing your order)

AC current: ac 0-99.99a, minimum resolution is 0.01a

AC Current: 0-to AC, Minimum resolution is A

Power frequency: 45.0Hz-65.0Hz

Power factor: 0.00-1.00PF

Active power: 0-45000W when the active power is between 0 and 9999.9 W, the display accuracy is 0.1 W

Electric Power: 0-9 99999kwh, when electrical energy between 0 and 999.99kwh, the

The accuracy of the screen is 0.01 kWh, when between 10000.0-999.9 kWh, the screen

The accuracy is 0.1 kWh, when between 10000.0 and 999999kwh, the screen

The accuracy is 1kWh.

3. Speed: 2 times per second

4. Size: 79*43*48mm

5. Installation size: 76x39mm
