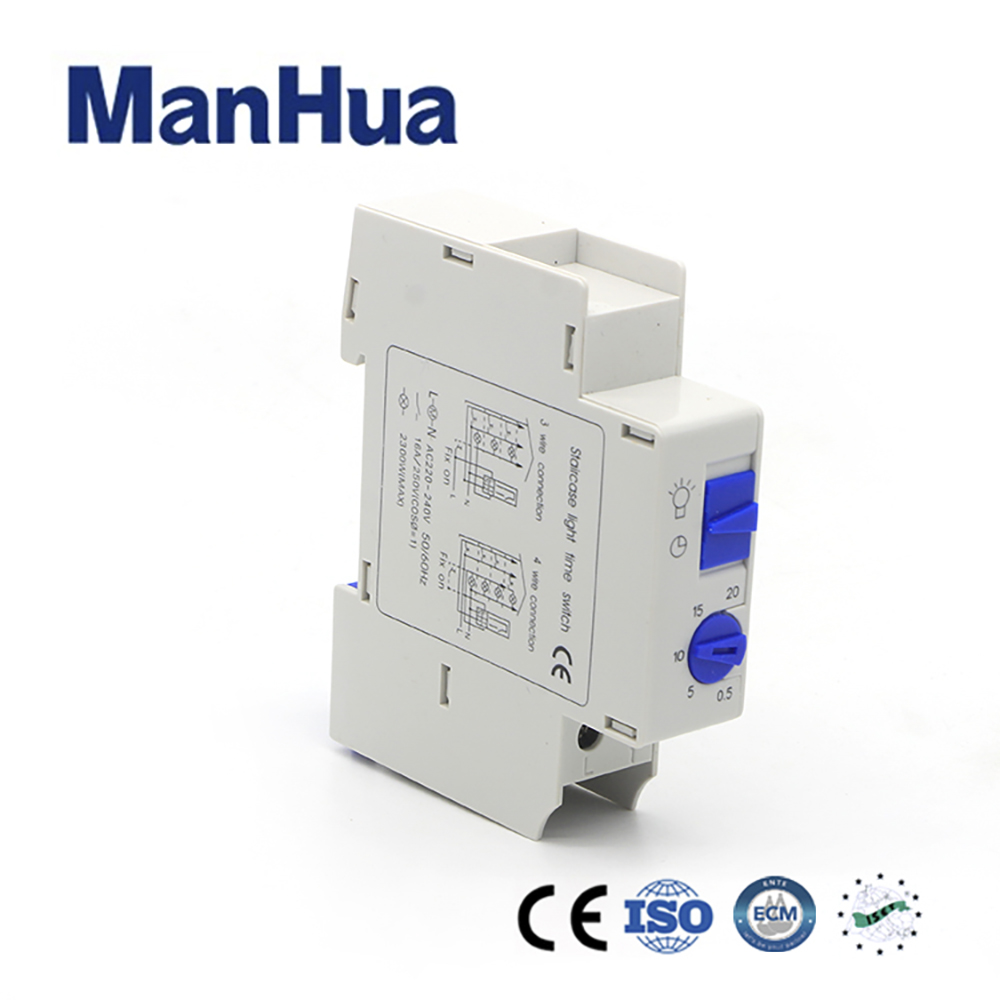

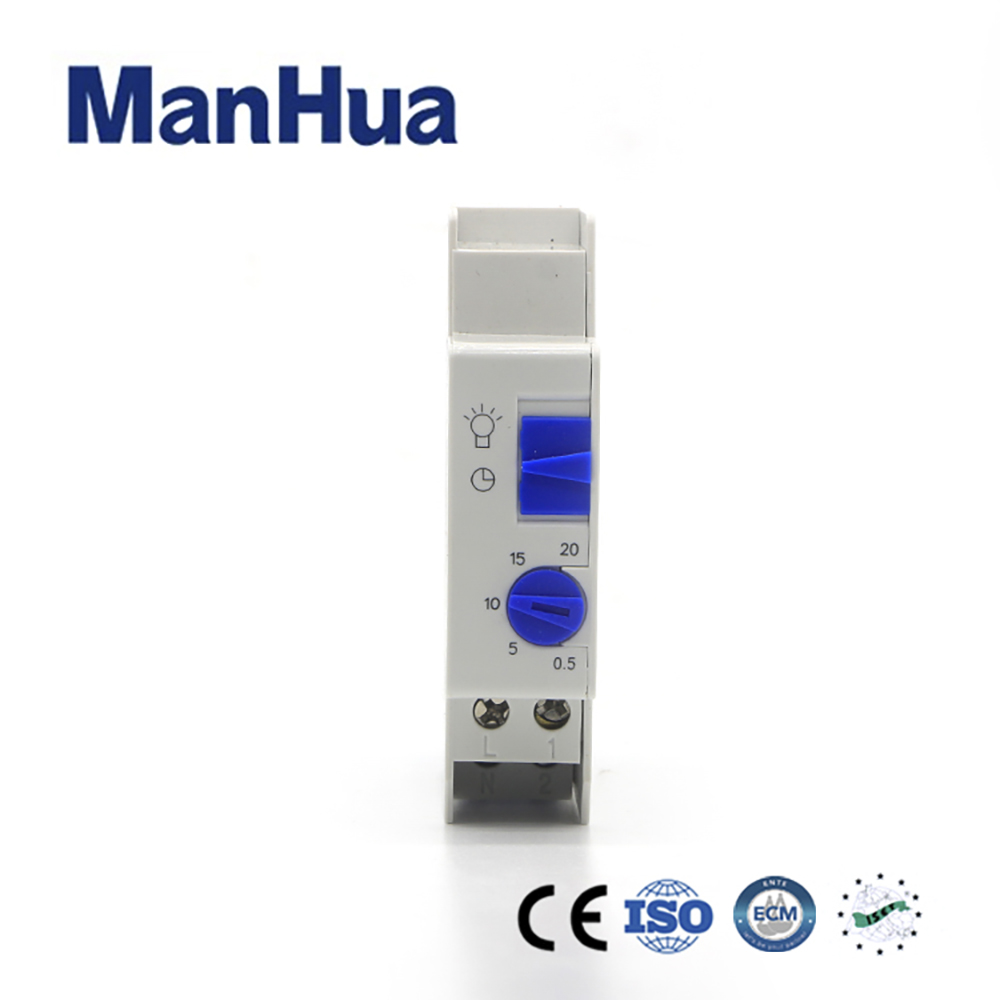

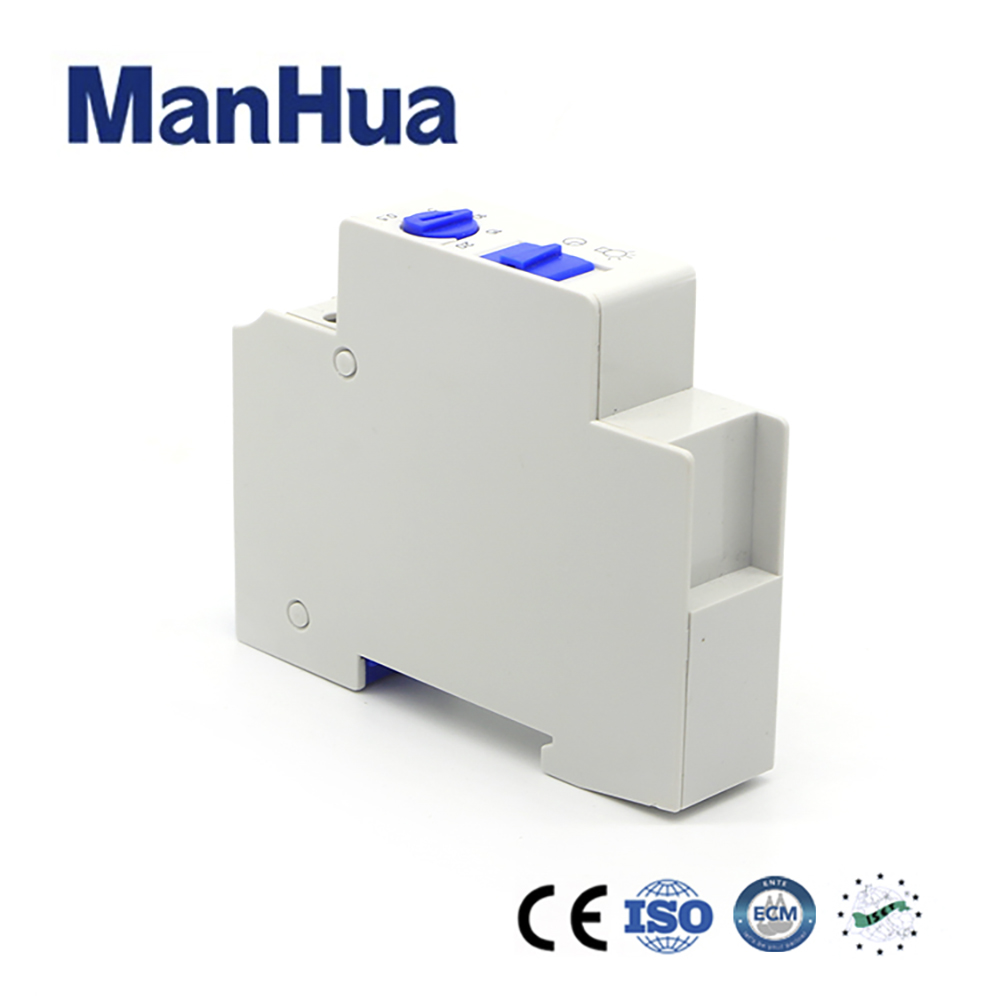

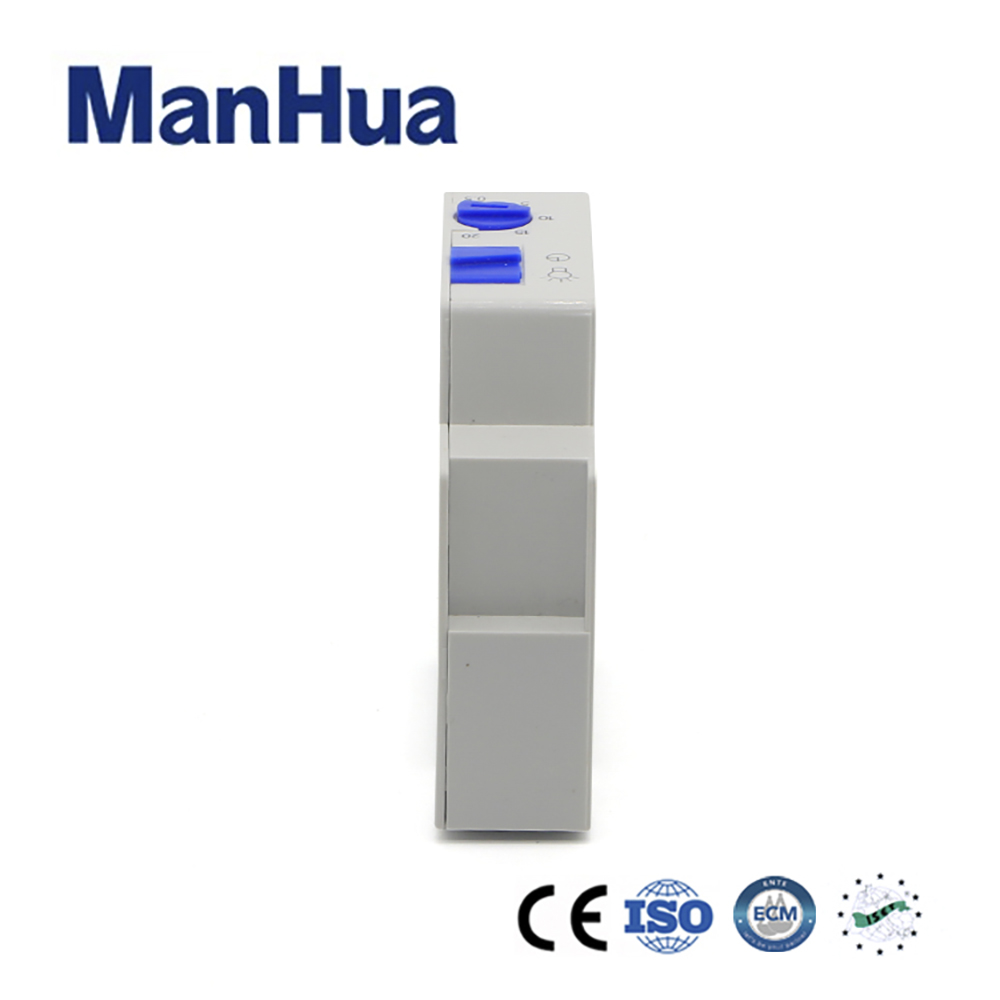

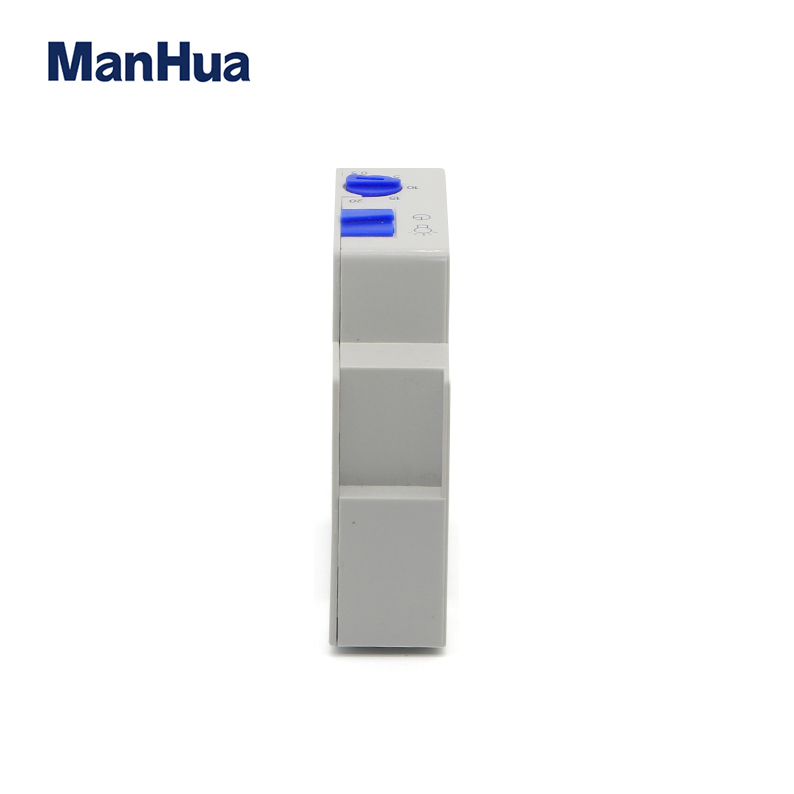

ManHua HT-18 AC220-240V 16A 50/60Hz Din Rail Electronic Staircase Light Time Switch Timing Range 20minutes

TIMER SWITCH

ManHua HT-18 AC220-240V 16A 50/60Hz Din Rail Electronic Staircase Light Time Switch Timing Range 20minutes Request quotation
Video PDF Download Contact us
Description
Report Item

ManHua HT-18 AC220-240V 16A 50/60Hz Din Rail Electronic Staircase Light Time Switch Timing Range 20minutes

Manhua Hot Product AC230V 16A Electronic Staircase Light Time Timer Switch HT18

Technical Data

Contact Capacity: AC230V 16A

Timing Range: 20

Contact Resistance: ≤50mΩ

Insulation Resistance: ≥100mΩ

Coil Voltage: 110,230V AC

Electrical Life: 10^5 times

Mechanical Life: 10^7 times

Operation Temperature: -40℃~+55℃

Min Setting Unit: 0.5 Minutes

Set Up Times:  0.5M,5M,10M,15M,20M

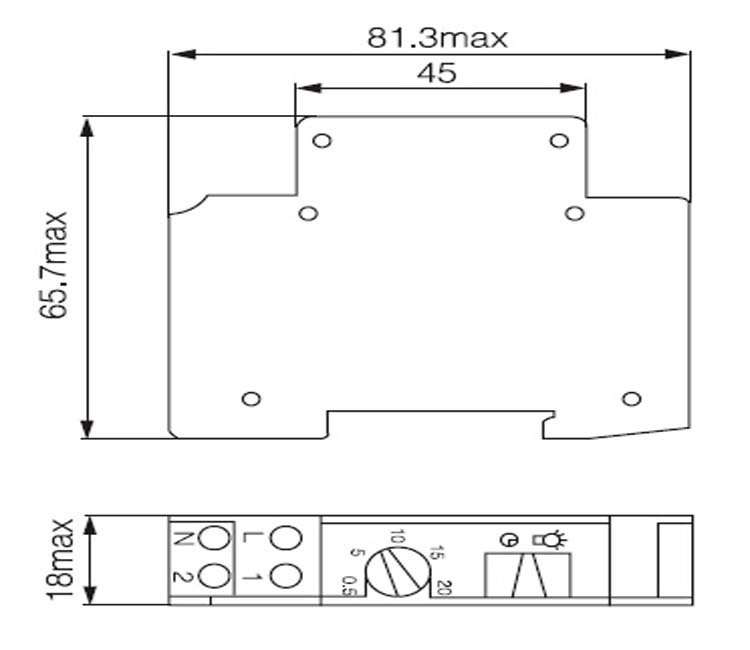

Dimension(mm)
