Technical parameters of AC contactor:

Product Description

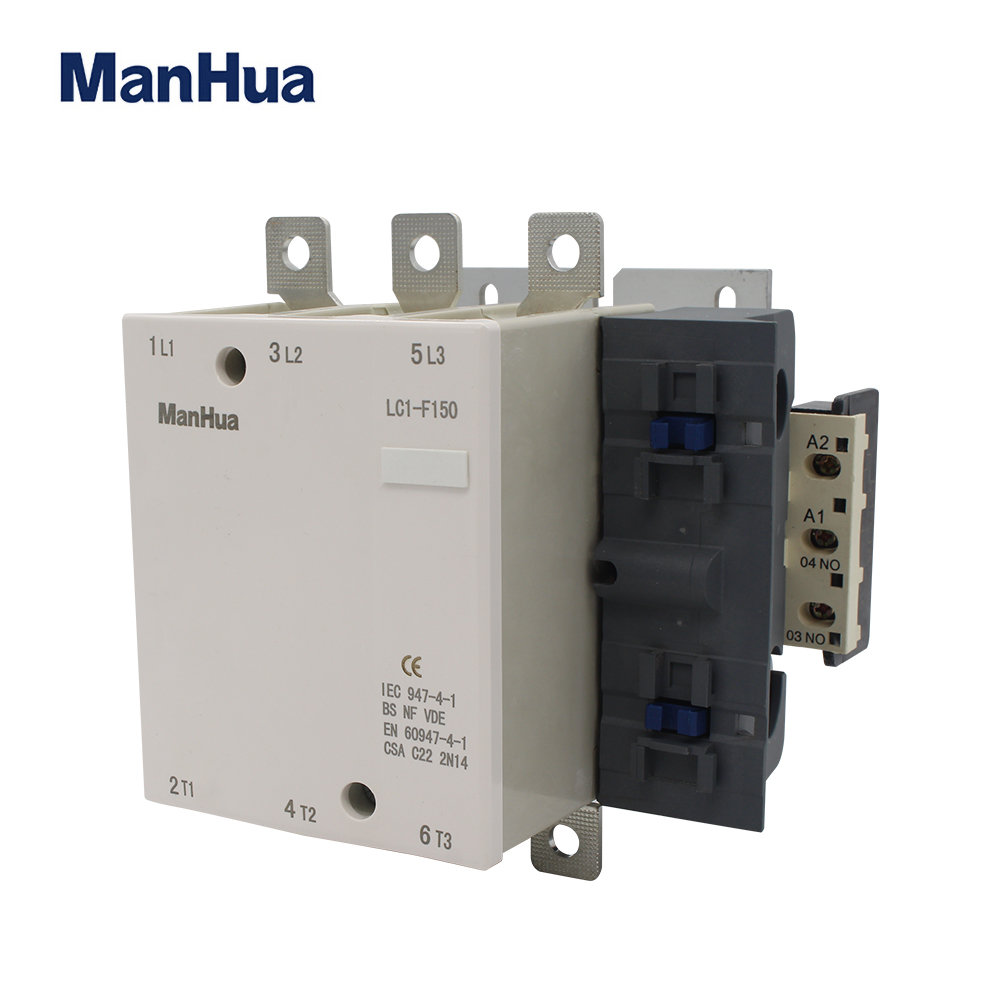

LC1-F series AC Contactor is suitable for using the circuit up to the rated voltage 660V AC 50Hz or 60Hz,  for making, breaking, frequently starting&controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter, With the thermal relay. It is combined into the electromagnetic starter.

Application

LC1-F AC Contactor is applicable to the circuits up to the rated volatge 1000V AC 50Hz or 60Hz, rated current up to 780A, for long distance breaking Circuit and frequently starting or controlling the motor. It also can be used for the contorl of distrbution circuits of rated current from 200A to 1600A

Specifications
