Type: M804C(TDK03048)

Supply Voltage: 85-264V AC/DC

Power Consumption: About l.5VA

Control Output: 2x5A, 250V AC (Resistance load)

Display Device: LED display

Temperature Set: 0 ～ 99.9 ℃

Humidity Set: 0 ～ 99.9%RH

Turn Difference Set: Temperature 0 ～ 9℃， humidity 1 ～ 9%RH

Distinguishability: Temperature 0.5℃， humidity 1 %RH

Accuracy: Temperature±1℃，humidity±5%RH

Working Mode: 2 modes, 0, 1

Ambient Temperature: -10 ℃ to 70℃

Ambient Humidity: 45 to 85%RH

Mechanical Life: At least 3000,000times

Weight /Size: About 110g/48x48x81 mm

Installation Mode: Panel mode, tapping size45x45mm

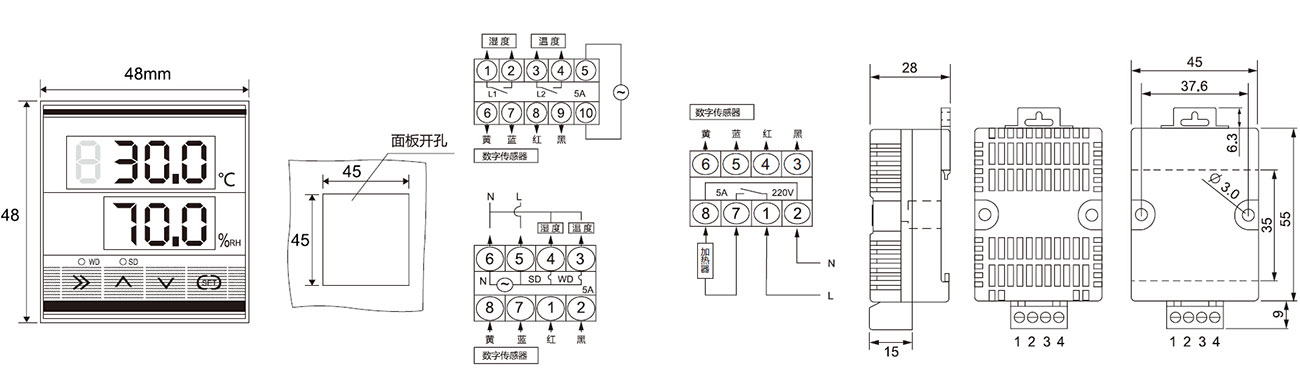

Connection Diagram:
