Function

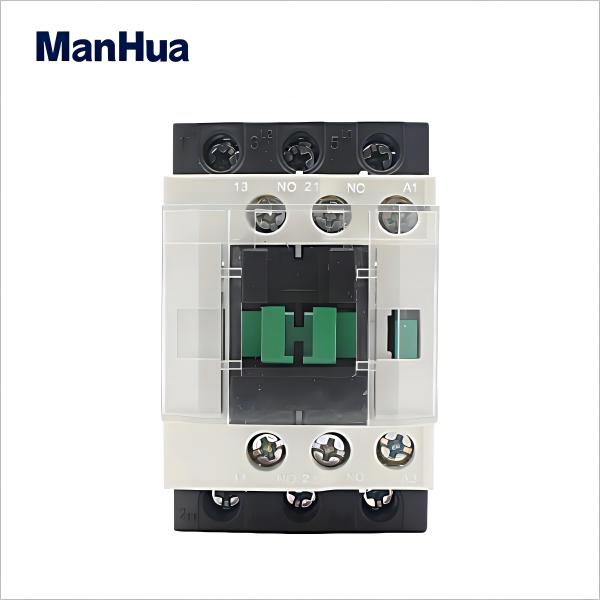

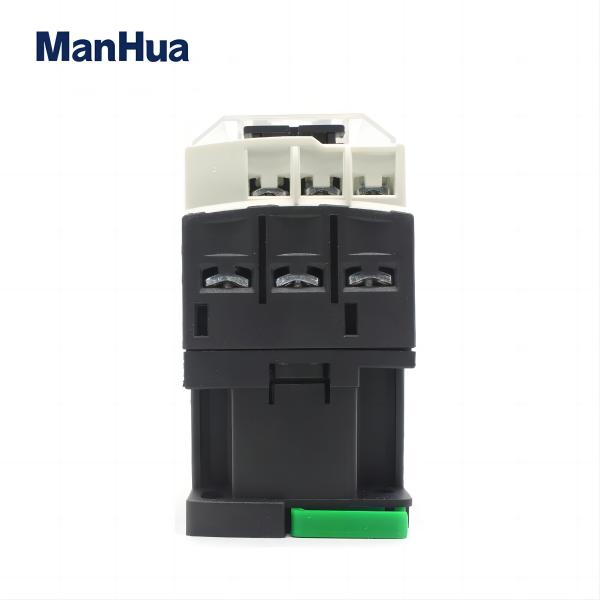

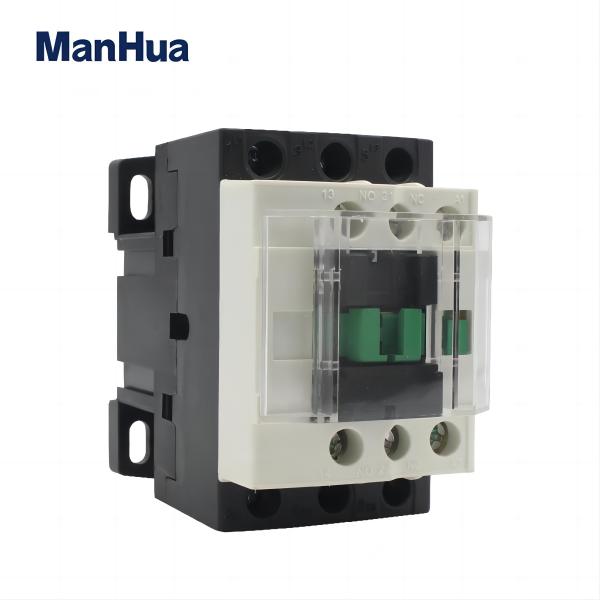

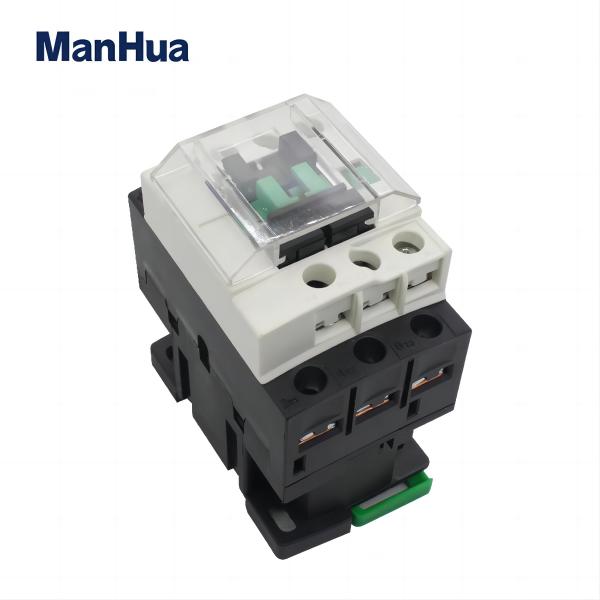

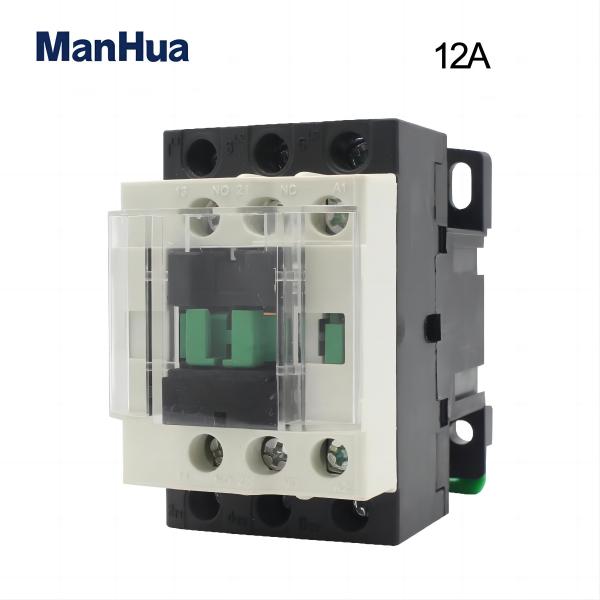

AC contactor mainly applies to the circuit of AC 50/60Hz, and rated insulation voltage 660V rated operating voltage up to 690V. When used, and rated operational voltage 380V and rated current up to 12A, for long distance breaking circuit and frequency starting or control the motor.

Applicable Working

Ambient temperature:-5~+40℃, the average value cannot exceed to +35℃ within 24h

Altitude:≤2,000m

Relative humidity:≤95%

Pollution level:II

Installation location:Mount on the place where has no obvious vibration or impact

Features

Combined with the auxiliary contact block, timer delay and mechanical interlocking device, etc, it becomes the delay contactor, mechanical interlocking contactor, star delta starter

With the thermal relay, it combined into the electromagnetic starter.

Full set accessories

Auxiliary contact group Top hung/side hung

Time-delay auxiliary contact
