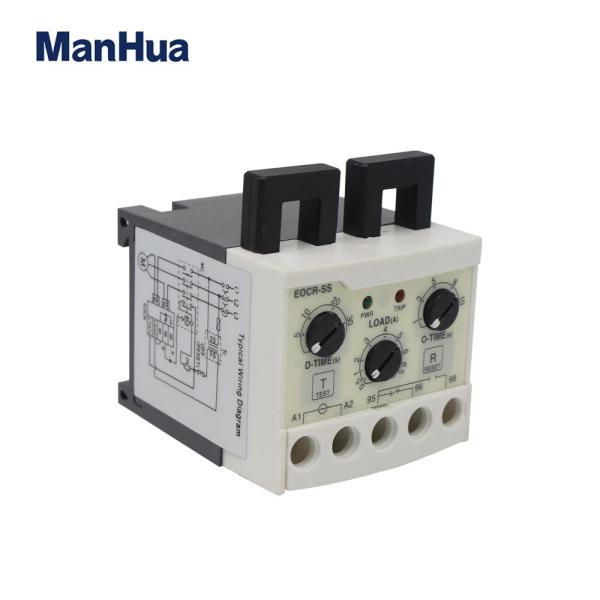

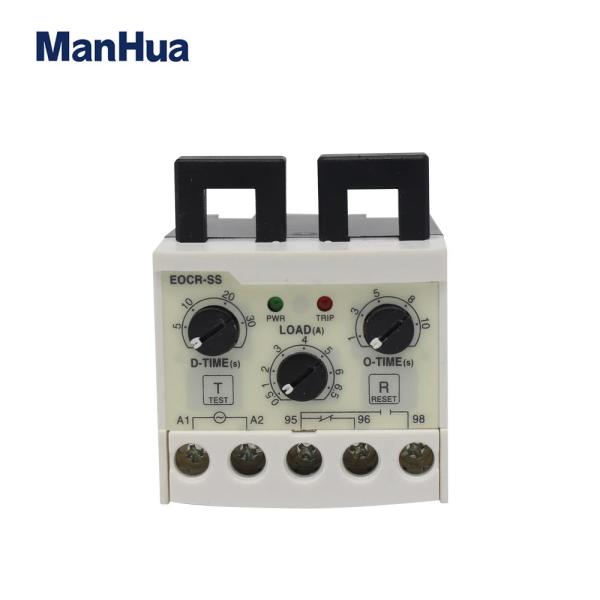

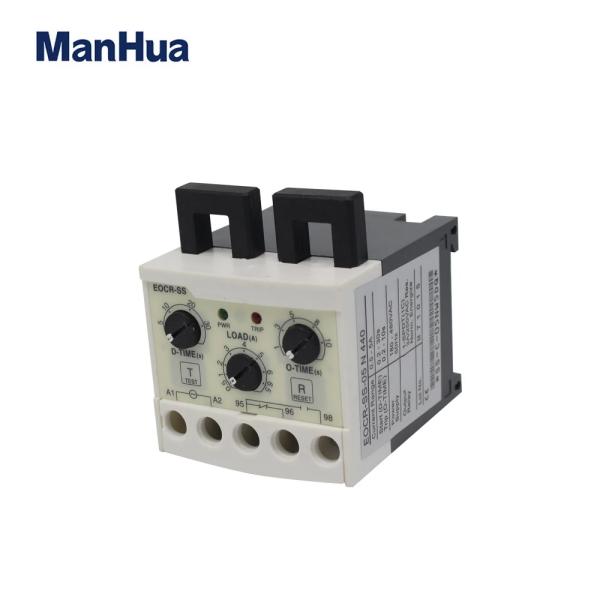

Contact usEOCR-SS 0.5-5A overload phase loss protection relay independently adjustable starting trip delay electronic overload relay
Function:
1.Overload and Phase Loss Protection
2.Independently adjustable starting and Trip Delay
3.Visual Current Setting Aid and Trip Indication(LED)
4.Flexible Power Supply(90 to 260VAC or 320 to 480VAC)
5.Fail Save Protection(N type)
6.Electronic Sheer-pin function

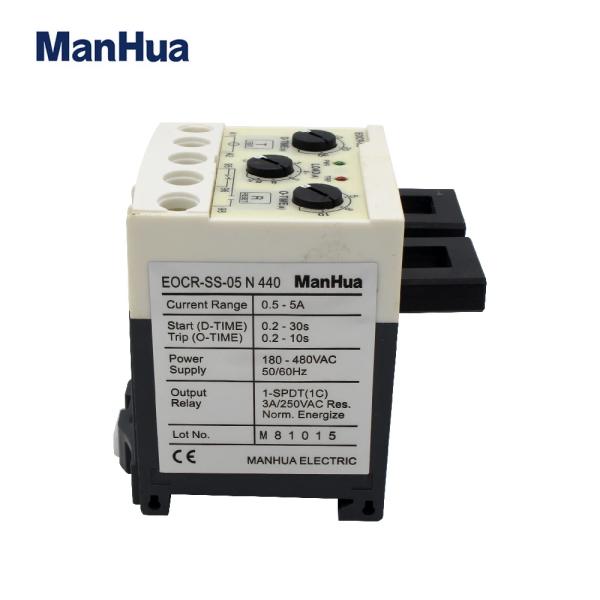

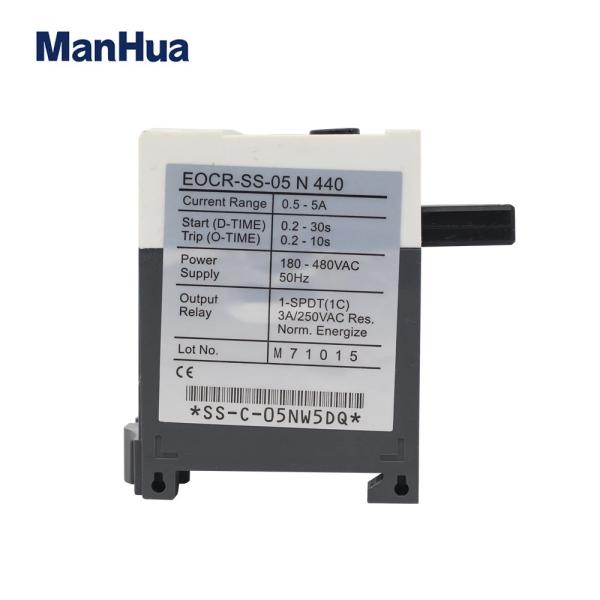

Technical Data:
|
Model |
EOCR-SS |
|
Current Range |
0.5-5A |
|
Rated Voltage |
600VAVC |
|
Operating Time |
D-TIME 0.2-30sec |
|
O-TIME 0.2-10sec |
|
|
Time-Current Characteristic |
Definite |
|
Operating (Trip) Indication |
2-LED |
|
Mount |
35mm Din-rail/Panel |
|
Power consumption |
Under 2W |
|
Humidity |
30-85%RH Non-condensing |
Specification:
|
Model |
EOCR-SS |
||
|
Current range |
05)0.5-5A |
||
|
30)5-30A |
|||
|
60)5-60A |
|||
|
Over 60A to 800A ,05 fitted w/external CTs |
|||
|
Rated voltage |
440VAC,50/60Hz |
||
|
Operating setting |
D-TIME |
0.2-30 seconds |
|
|
O-TIME |
0.2-10 seconds |
||
|
Accuracy |
Current |
±10% |
|
|
Time |
±15% of max.time set value |
||
|
Time characteristics |
Definite time |
||
|
Control voltage |
220)Voltage Free (90~260)VAC,50/60Hz 221)440)Voltage Free (1890~480)VAC,50/60Hz Other voltage optional. |
||
|
Rate Voltage |
600VAC,50/60Hz |
||
|
Current sensing |
2 CTs |
||
|
Output contacts |
Contacts |
SPDT 3A/250AVC Resistive |
|
|
Condition |
N Type |
Normally energized:95 - 98close |
|
|
R Type |
Normally de-energized:95 - 98close |
||
|
Reset |
Manual or remote electrical by interrupting supply |
||
|
Environment |
Temp. |
Run |
-20~60 deg℃ |
|
Store |
-30~80 deg℃ |
||
|
Humid |
30~85% RH,non-condensing |
||
|
Insulation |
Between casing and circuits:Over 10MΩwith DC 500V megger |
||
|
Dielectric strength |
1)Between casing and circuits:AC 2000V,60Hz,1min |
||
|
2)Between contacts: AC 1000V,60Hz,1min |
|||
|
3)Between circuits:AC 2000V,60Hz.1min |
|||
|
Power consumption |
Under 2W |
||
|
Mounting |
35mm Din Rail(D) or Pane(P) |
||
