Contact usFeatures
Standard:IEC60439-3
Electric ratings:up to 100A,240/415V,AC 50/60Hz
No.Of mounted units:4,6,8,10,12,18,24,36 ways
On-load current(A):100/1-phase,63/3-phase
IP Rating:40
Material of body:HIPS,ABS,ABS-UV Fire Resistant
Material of Transparent Door:AS,UV Resistance PC
Approvals:CE,RoHS

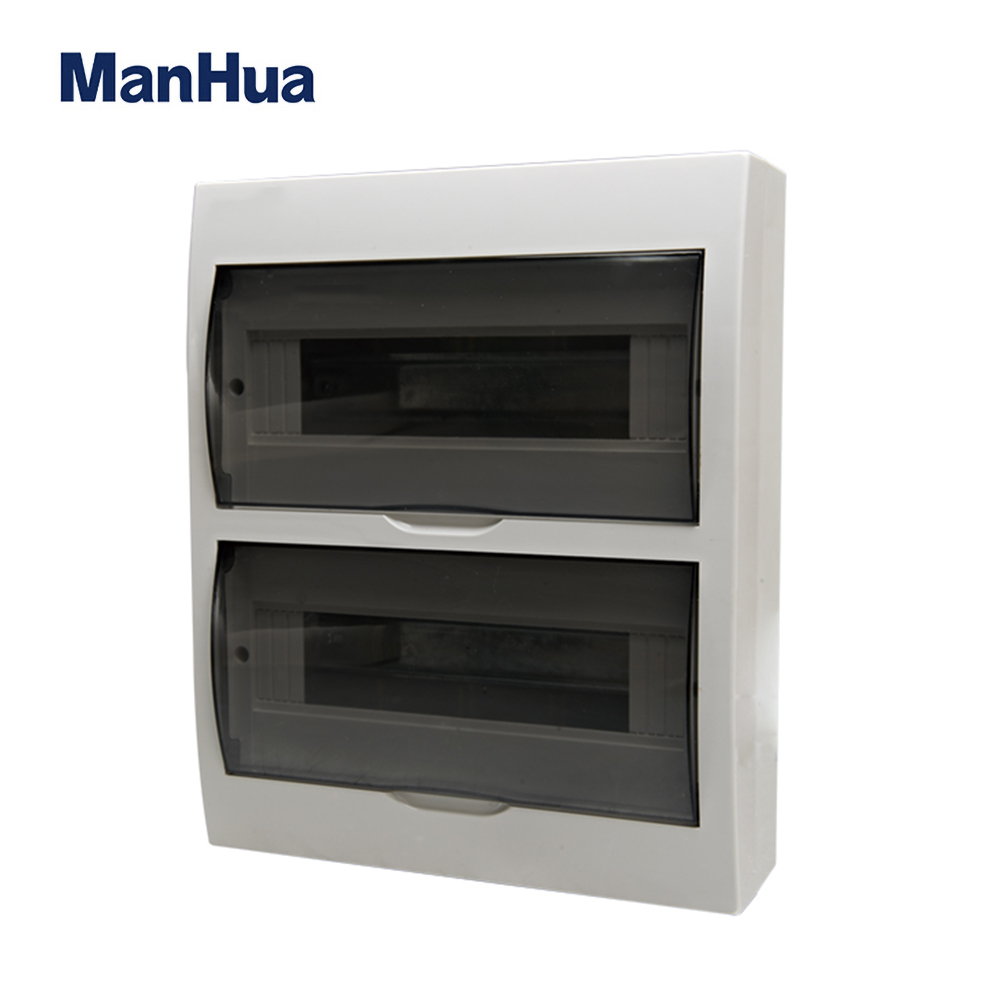

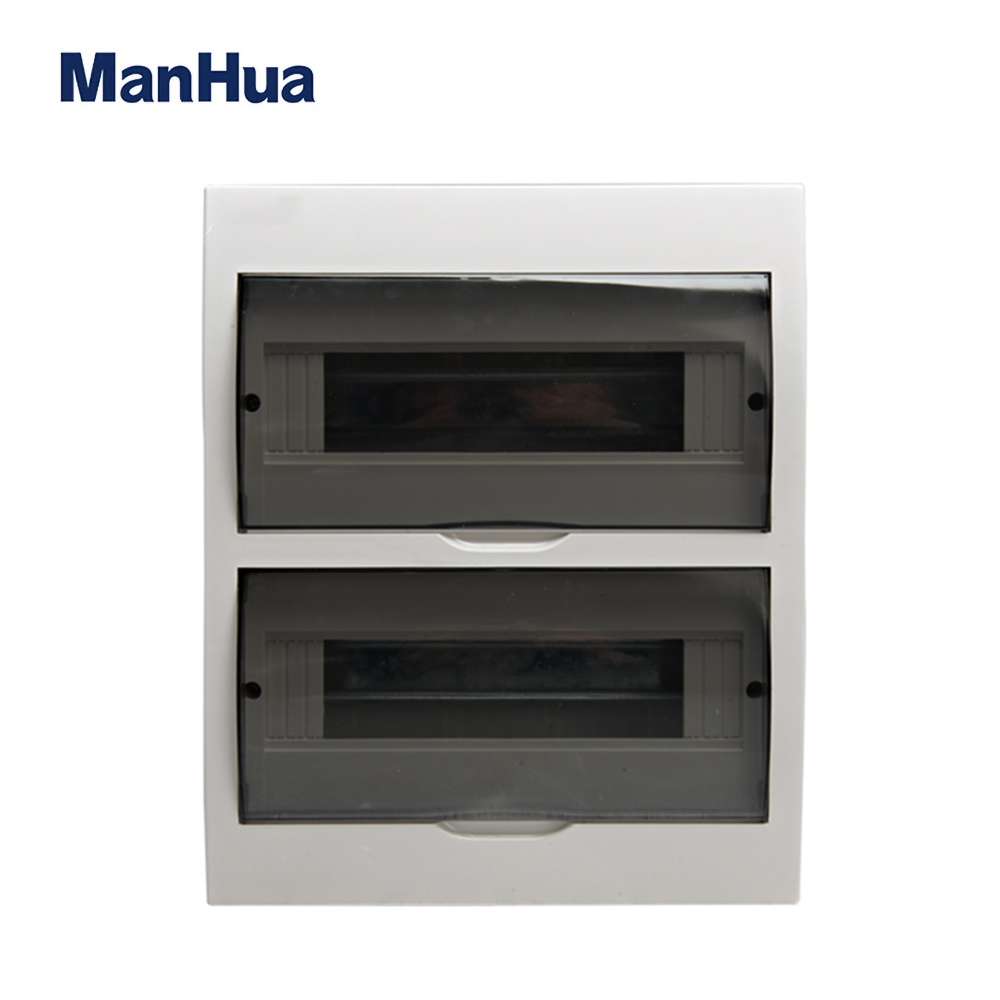

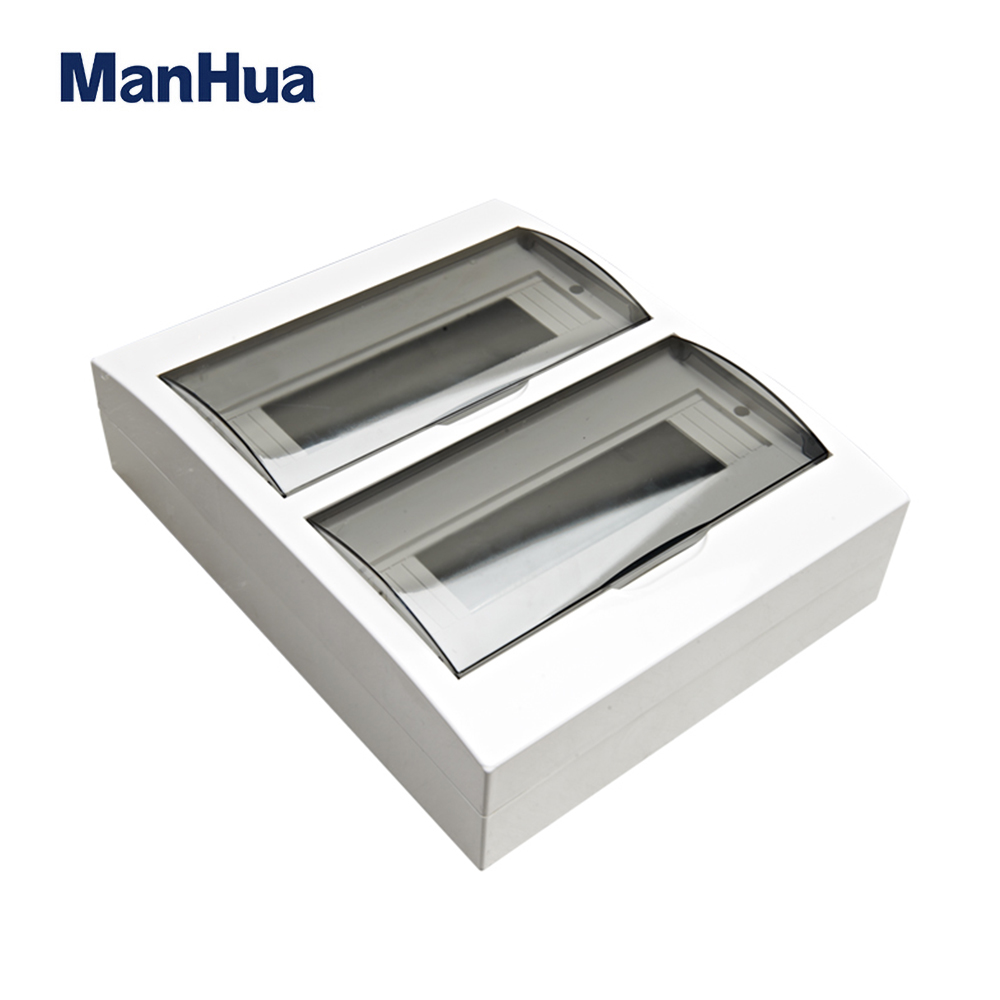

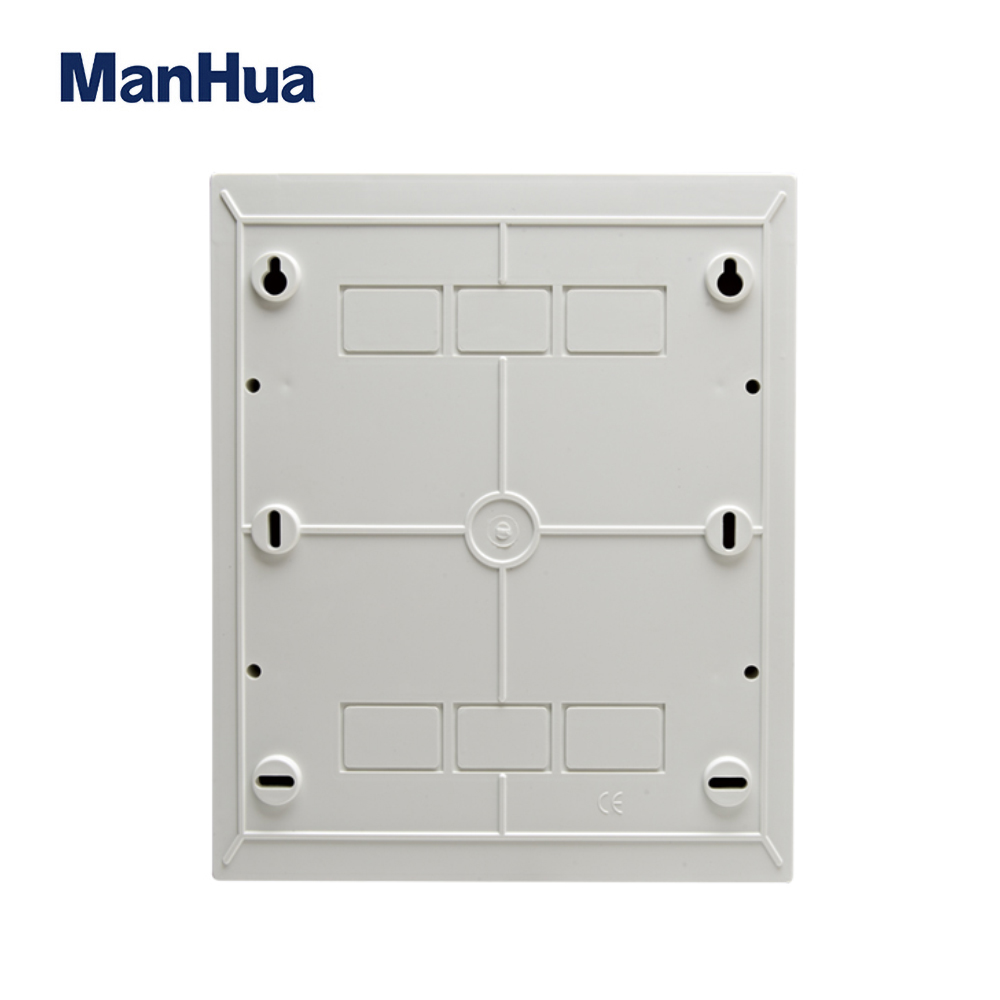

TX-MS Series of Surface Mounting
| Part No. | Dimension(mm) | Qty/Ctn(pcs) |
| L W H B | ||
| MF 4 Ways | 136 222 93 86 | 20 |
| MF 6 Ways | 172 222 93 122 | 20 |
| MF/D 6 Ways | 192 222 93 122 | 20 |
| MF 8 Ways | 208 222 93 158 | 20 |
| MF/D 8 Ways | 228 247 93 158 | 20 |
| MF 12 Ways | 280 222 93 230 | 10 |
| MF/D 12 Ways | 305 247 93 230 | 10 |
| MF 15 Ways | 334 222 93 283 | 10 |
| MF/D 15 Ways | 354 247 93 283 | 10 |
| MF 18 Ways | 398 252 103 338 | 10 |
| MF/D 18 Ways | 415 270 103 238 | 5 |
| MF 24 Ways | 300 355 103 232 | 10 |
| MF/D 24 Ways | 305 355 103 232 | 5 |
| MF 36 Ways | 341 503 103 265 | 5 |
Dimension(mm)
