Type: ZR 011

Function:

1.NO and NC in one casing

2.Separate adjustable temperatures

3.High switching capacity

4.Terminals easily accessible

5.Clip fixing

Switch Temperature Difference: 7K（±4K tolerance）

Sensor Element: thermostatic bimetal

Contact Resistance: ＜ 10mΩ

Service Life: ＞ 100000 cycles

Max.Service Capacity: 250VAC , 10(2)A ; 120VAC , 15(2)A ; DC 30W

EMC: acc.to EN 55014-1-2 , EN 61000-3-2 , EN 61000-3-3

Connection: 4-pole terminal,clamping torque 0.5Nm max:rigid wire 2.5mm2 wire (with wire end ferrule)

Mounting: Clip for 35mm DIN rail(EN50022)

Casing: plastic according to UL94 V-0

Dimensions: 67×50×46mm

Operating/Storage Temperature: -20 to +80℃（-4 to+176° F）

Protection Type: IP20

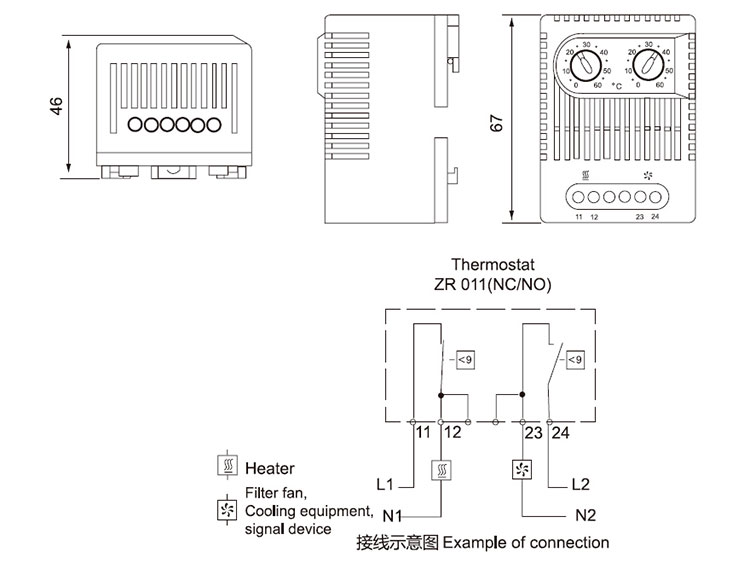

Wiring Diagram:
