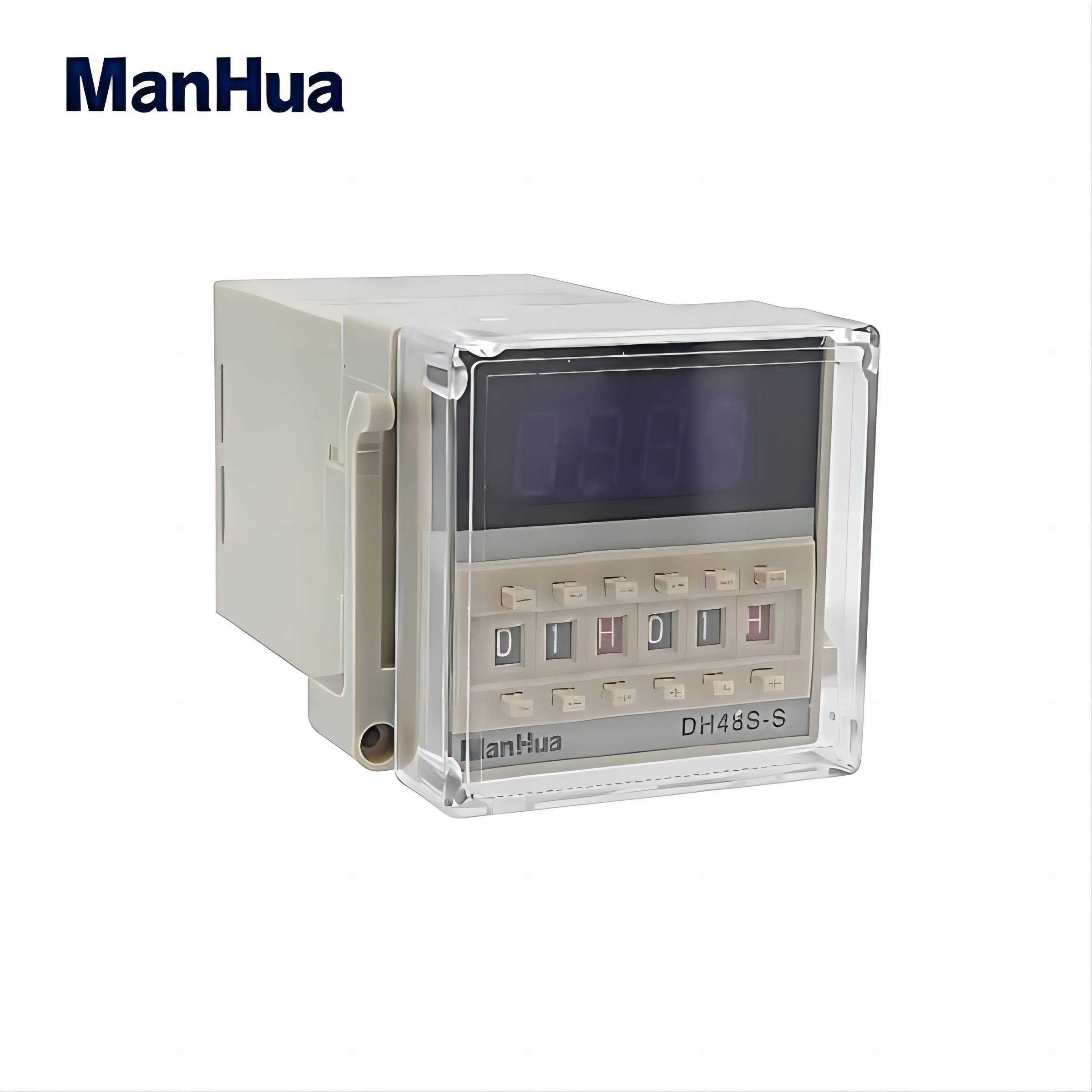

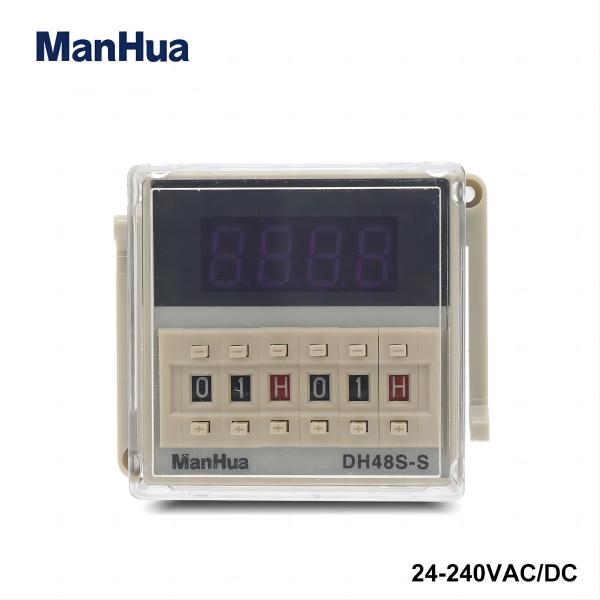

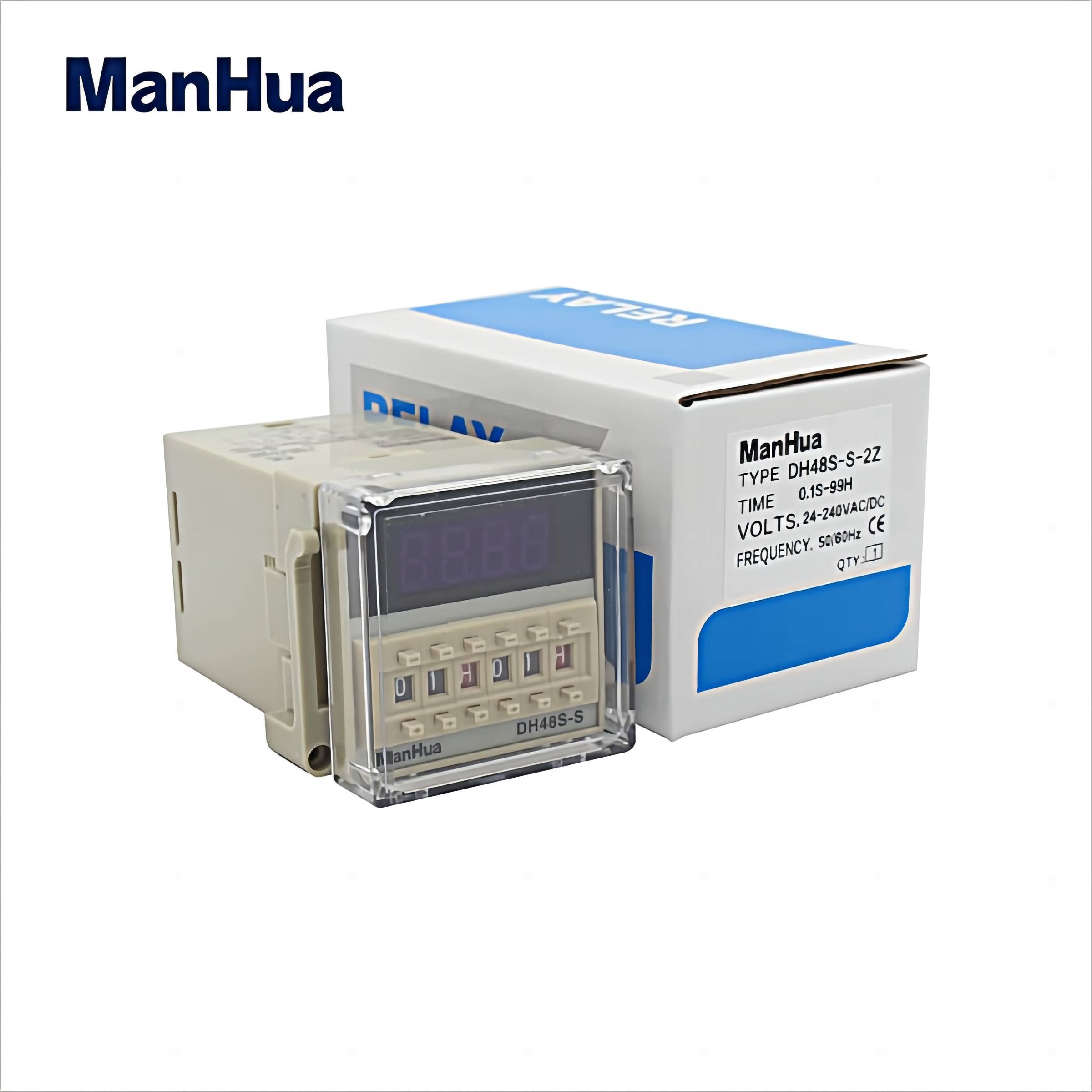

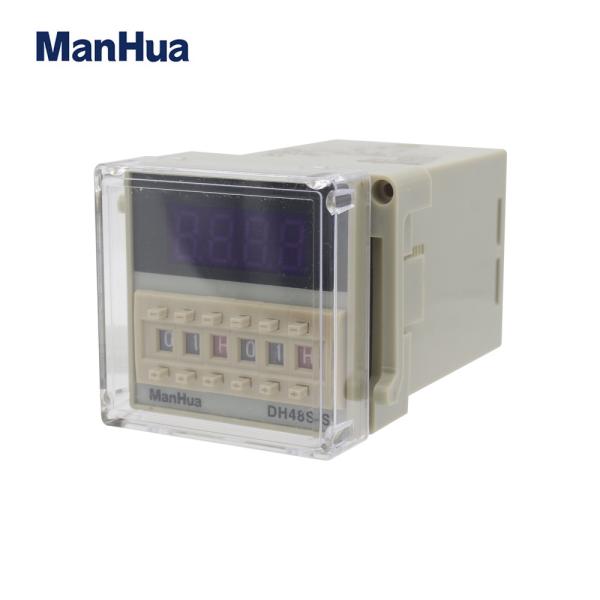

ManHua Digital display time relay DH48S-S-2Z electric delay timer 0.1S-99H LCD Display with base

Features:

1. Clear LED display for accurate timing control.

2. Time range can be set freely by the dial switch, quick adjustment, easy to operate.

3. The relay is closely connected with the base, and the conductivity is excellent.

4. The time adjustable range is 0.1S-99H, which can satisfy most control requirements.

5. Integrated circuit: high quality original, craftsman welding, fully automatic control, safe and reliable work.

6. Mainly used for outdoor billboards, factory workshops, road lamps and so on.

Specification:

Condition: 100% Brand New

Item Type: Digital Time Relay

Model: DH48S-S-2Z

Delay Range: 0.1S-99H

Rated Current: 10A

Function: 2 groups of delay switches, no pause, no reset

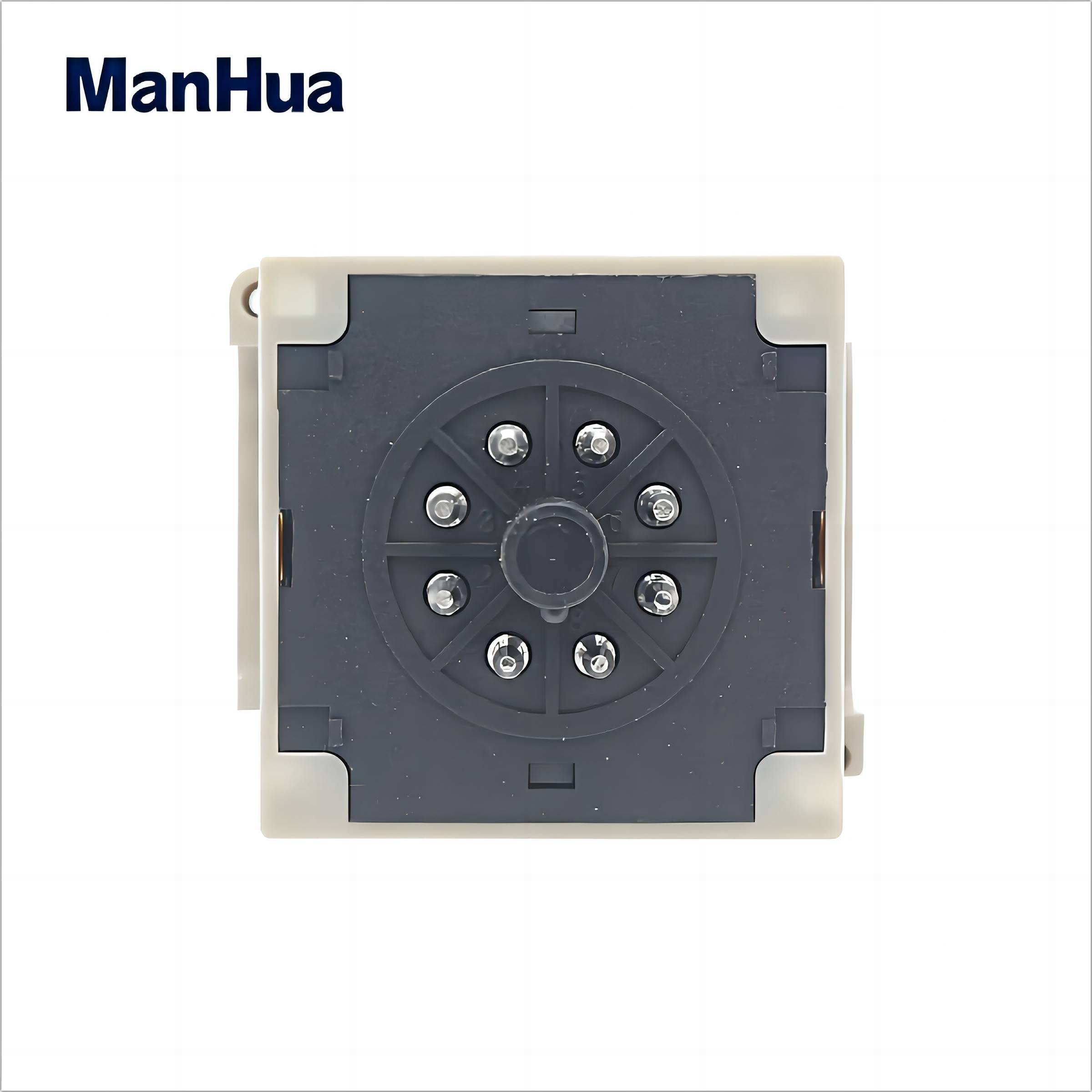

Power Connection: Round 8 Pin

Display: LCD Display

Adjustment Method: Dial Code

Power Source:85-110% Rated Voltage

Mechanical life: >10000000

Electrical Life:>100000

Operating ambient temperature:-10℃-50℃

Power consumption: ≤5W

Altitude:<2000m
