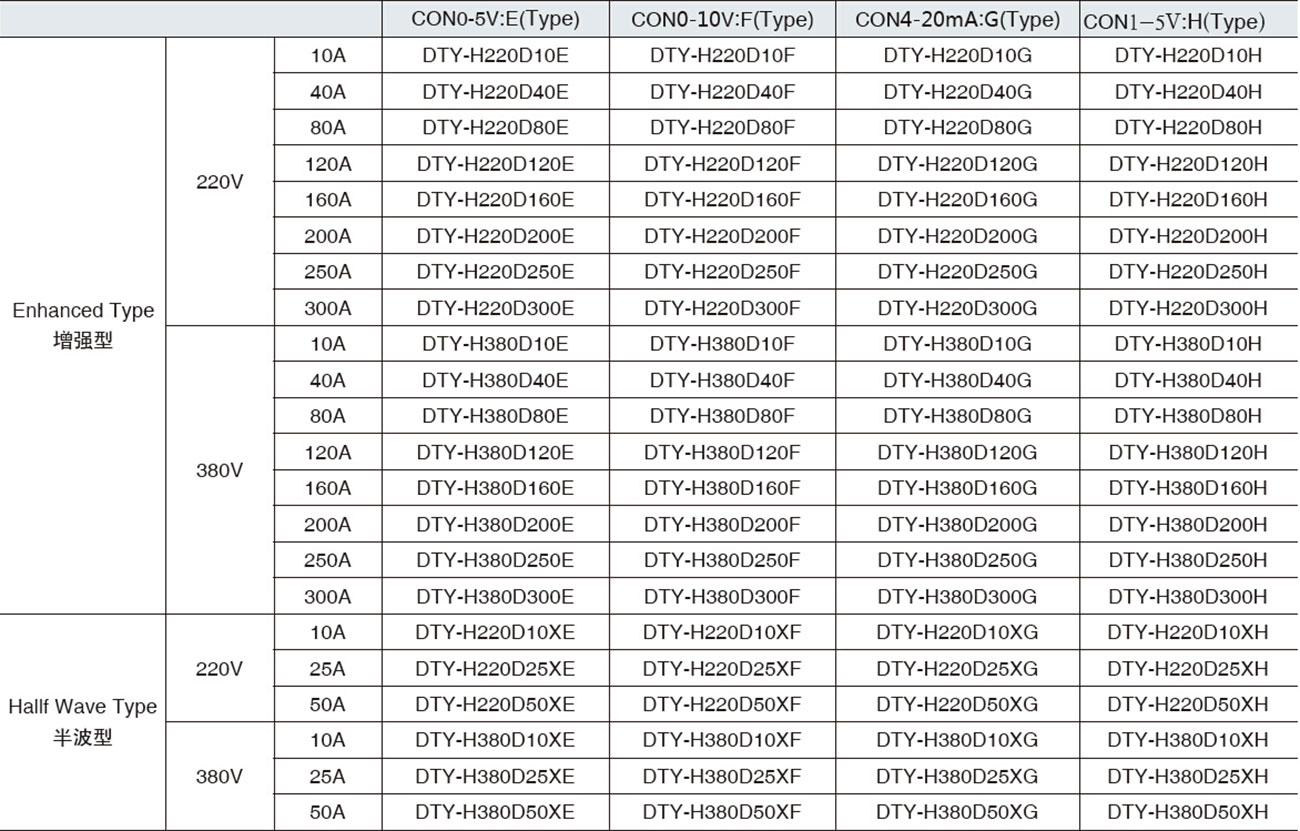

According to the thyristor, there are two types : Enhanced type and Half Wave type.

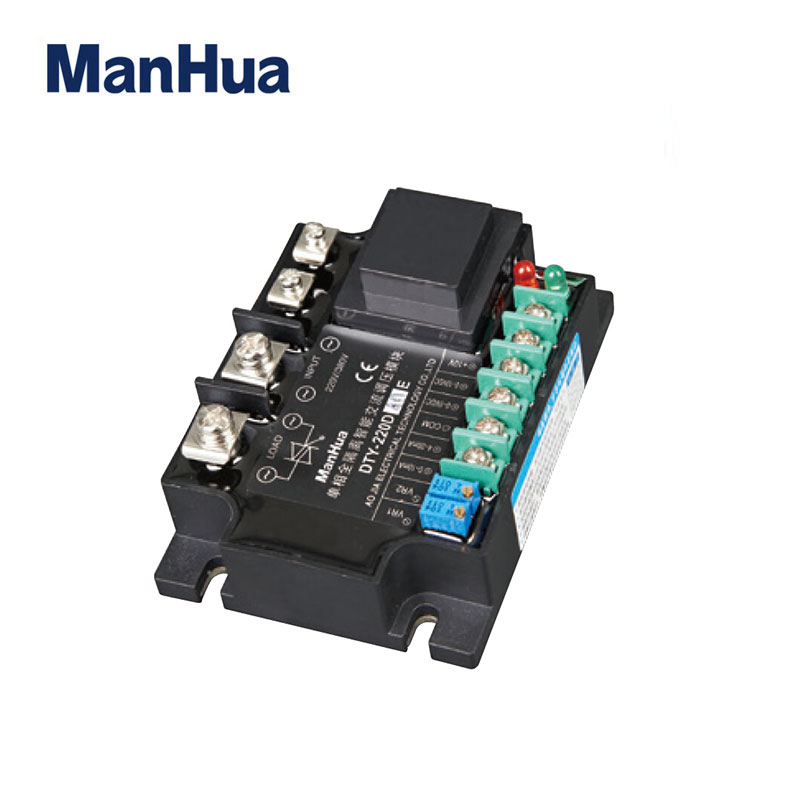

DTY single phase module work for regulator the voltage of AC electric power.

According to the thyristor, there are two types : Enhanced type and Half Wave type.

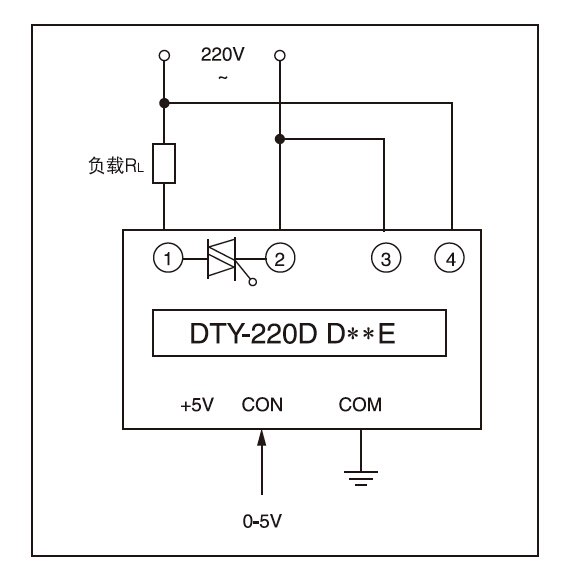

a. 220Vac Automatic Control Circuit Diagram

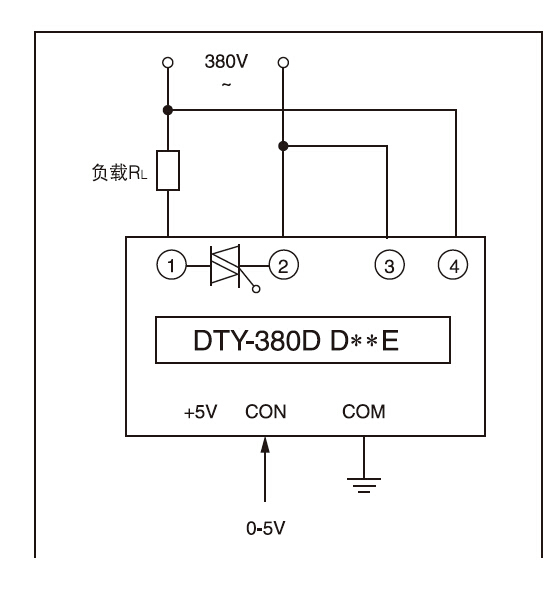

b.380Vac Automatic Control Circuit Diagram

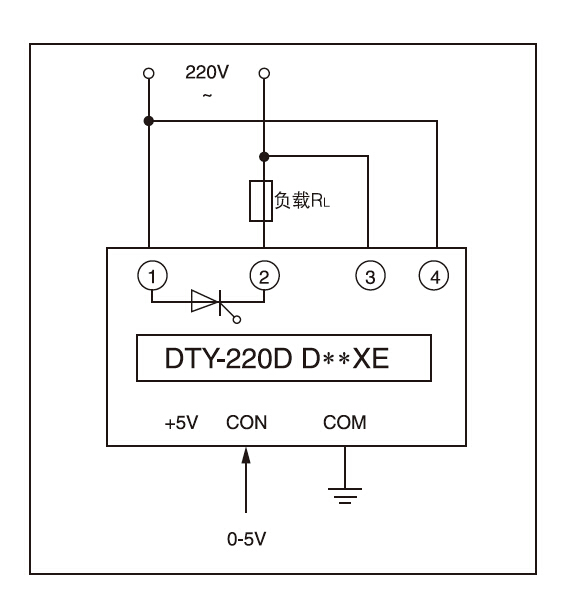

C.Single Phase Half Wave Automatic Control Circuit Diagram

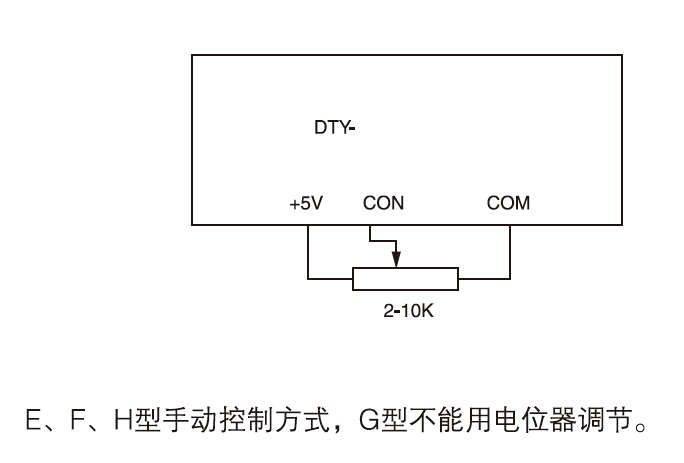

d.Manual Control Circuit Diagram
