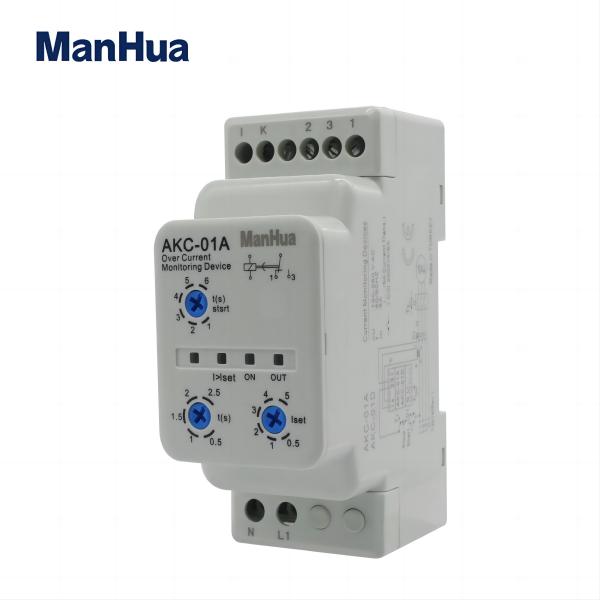

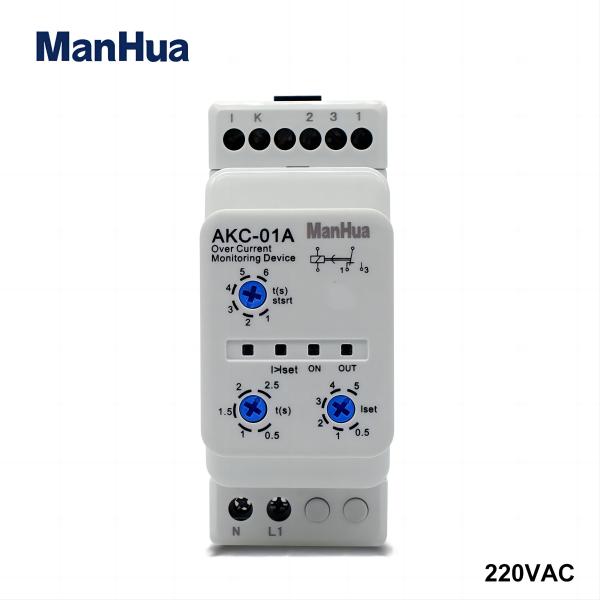

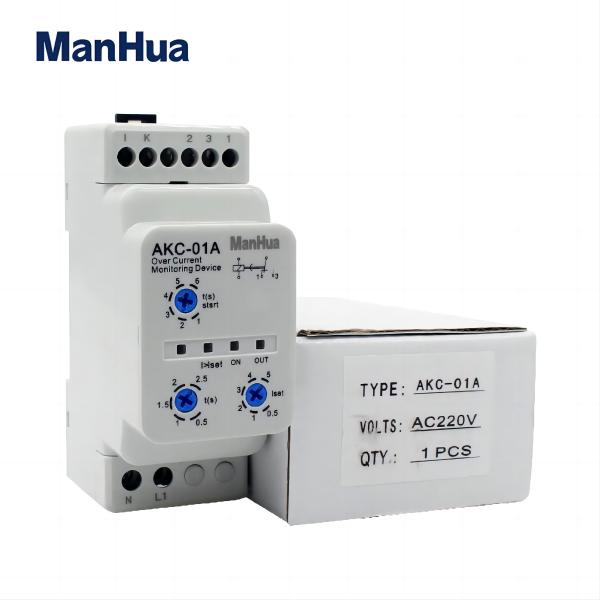

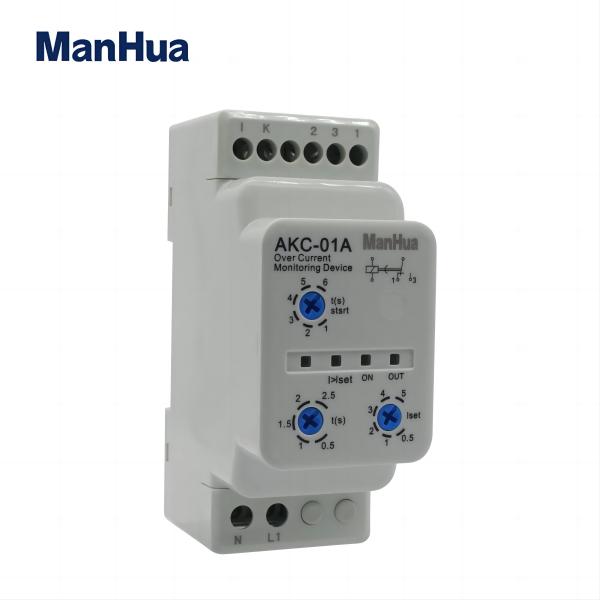

ManHua Din Rail Current Protection Relay AKC-01A 220V 0.5-5A Over current monitoring device Start-up delay 1-6 sn

Description:

AKC-01A over current monitoring device are designed to protect motors and systems against over current with a current adjustment and two delay adjustments.Start-up delay is developed in order to prevent false contact turn-off arising from initial motor start-up currents.

Technical data:

Operating range:(0.9-1.1)×Un

Operating frequency:50/60Hz

Current adjustment interval:0.5-5A(AC)

Current transformer ration:.../5A

Start-up delay:1-6 sn

Tripping delay:0.5-2.5 sn

Output contacts:1C/O,8A,2000VA,cosψ=1

Ambient temperature:-5℃-+55℃

Protection class:IP20

Installation:Surface mounting or on the mounting rails

Protections for installation and safe use:

1.Failure to follow those instructions will result in death or serious injury.

2.Disconnect all power before working on equipment.

3.When the device is connected to the network ,do not remove the front panel.Do not try to clean the device with solvent or the like.

4.Only clean the device with a dried cloth.

5.Verify correct terminal connections when wiring.

6.Electrical equipment should be serviced only by your compedent seller.

7.Mount device to the panel.

Dimension:
