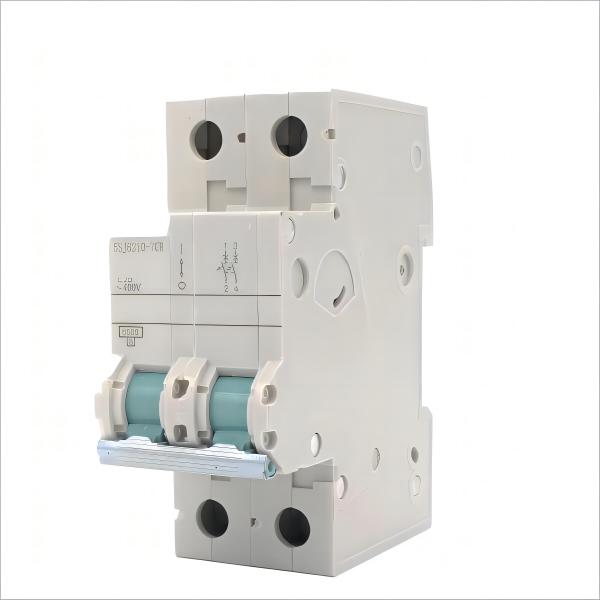

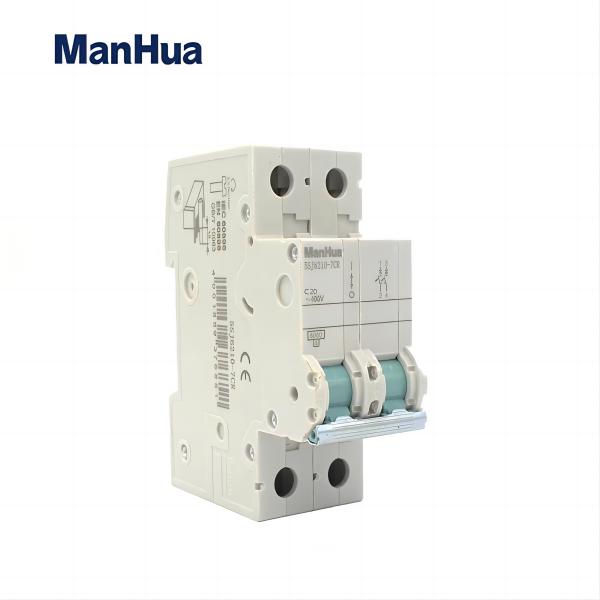

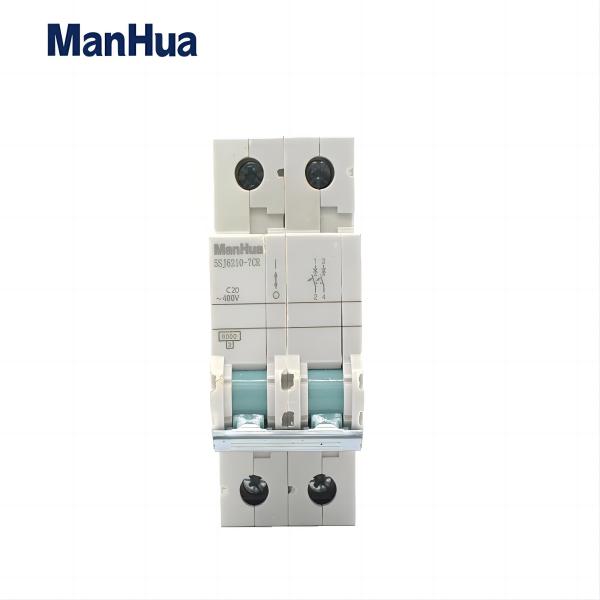

5SJ6210-7CR MCB Double Poles C Curve 16A 25A 63A 2P Breaking Capacity 6KA Miniature Circuit Breaker LOW Heat Rising AC230V DIN Rail

is_customized: Yes Model Number: 5SJ6210-7CR
Type: Mini Origin: Mainland China
Certification: CE Product name: Miniature Circuit Breaker
Rated current: 10A/16A/20A/32A/63A Certificate: CE/ISO9001
Breaking capacity: 6KA Standard: IEC61008-1
Pole: 2/Double Pole Material: copper
Mechanical Life: 10000 times Application: Used in domestic, non-residential buildings, energy, industrial and electrical infrastructure
Frequency: 50/60Hz Installation: 35mm DIN Rail
Warranty: one year Keywords: Thermal Overload Protector Switch
Function: Protect Overload Product Keywords: MCB Overvoltage
Trip curve: C Packing: carton Request quotation
Video PDF Download Contact us

MCB Double Poles 5SJ6210 C Curve 16A 25A 63A 2P Breaking Capacity 6KA Miniature Circuit Breaker LOW Heat Rising AC230V DIN Rail

Product Brand

ManHua

Product Type

5SJ6210-7CR

Product Name

Miniature Circuit Breaker

Rated Voltage Ue

230/400VAC

Rated Current

10/16/25/32/63A

Rated frequency

50/60Hz

Number Of  Pole

2P

Product keywords

Short Circuit/Overload/isolation

Standard

IEC/EN60898-1

Thermal operating limit(In)

1.13-1.45

Breaking capacity

6kA

Degree of protection

IP40(top),IP20(terminal),with connected conduct

Material

Flame Resistant Plastic and Copper

Mechanical life(0-C)

10000

Application

Household and industrial circuit breakers

installation

35mm DIN Rail

Product Function

Short-circuit equipment protection

Packing

Carton

Terminal tightening torque(N.m）

2.5-3

trip curve

C

Ambient temperature

-40℃~+85℃

Altitude

20000

Operation method

operating handle
