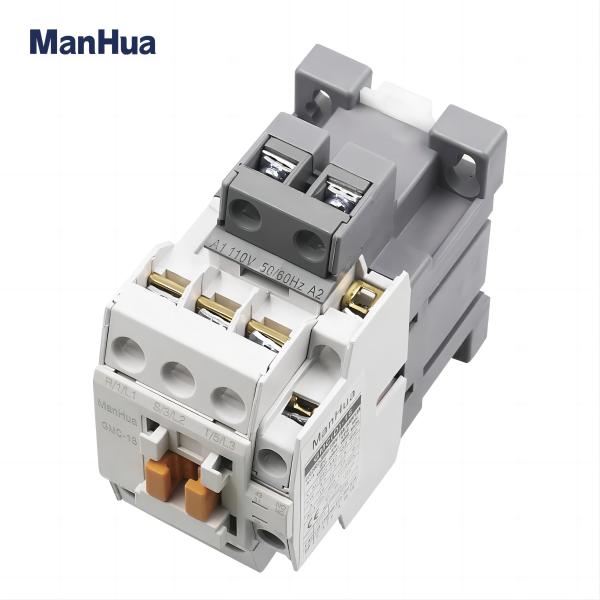

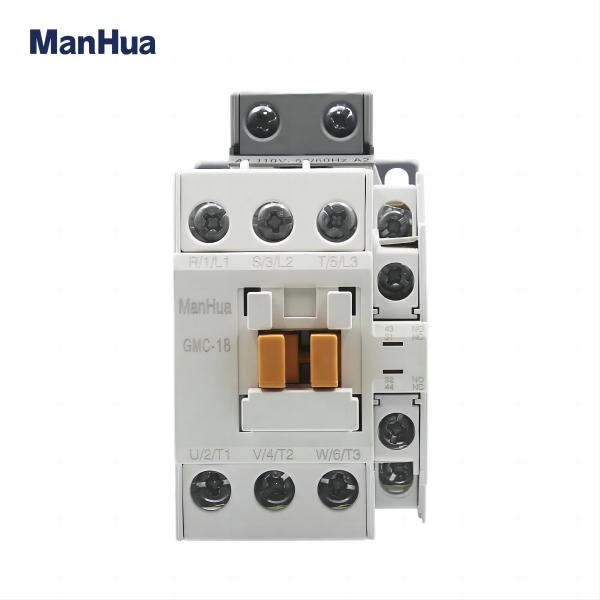

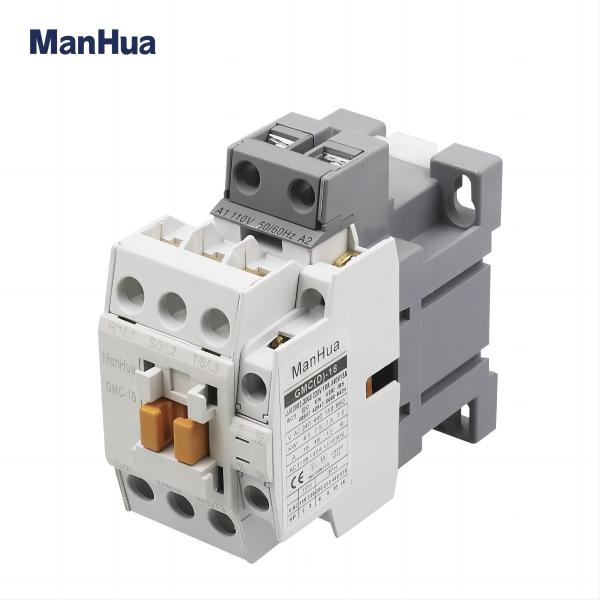

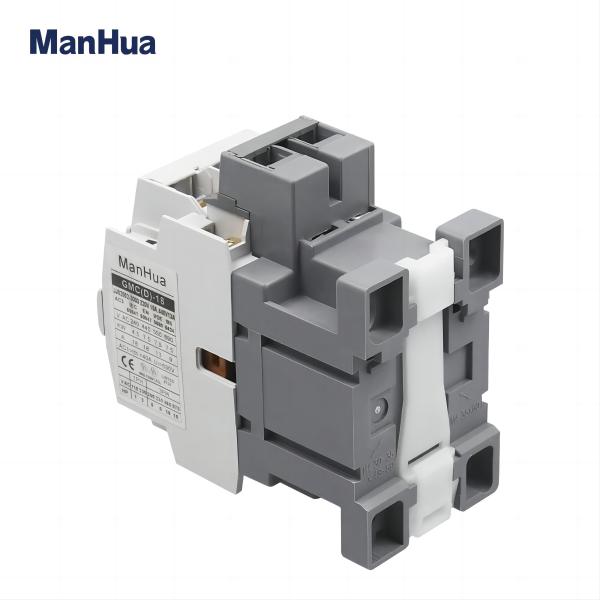

ManHua 3P GMC-18 220VAC 18A Electrical Magnetic Contactor Three Phase For Protect Home Improvement And Electrical Equipment

GMC (LG/LS) Series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50HZ or 60HZ, rated current up to 85A, for making frequently starting & controlling the AC motor. Combined with the auxiliary contact block, thermal relay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter.

Features:

(1) the electromagnetic system, including attracting coil, a movable iron core and the static iron core;

(2) the contact system, which comprises three groups of main contact and one to two groups of normally open, normally closed auxiliary contact and the moving iron core, it is together mutual linkage;
(3) out AC contactor arc device, generally larger capacity is provided with an arc extinguishing device, in order to quickly cut off from the main contact arc, burnt out;
(4) insulation casing and accessories, all kinds of spring, a transmission mechanism, a short circuit ring, terminal etc..

Technical data:

About Feedback:

Dear friends: Welcome to my store, thank you! Your satisfaction is our aim, your feedback is very important for us sellers, if you are satisfied with the goods, please give us 5 star encourage if you are not 100% satisfied with the product, please be sure to contact me, please do not just hit bad review.I believe we can solve the problem together.

Quality assurance:

1.One year guarantee.

2.If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).

3.We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost(from us to your location);After 1 month of purchase, the buyer need to pay two ways of shipping cost.

4.One we get the returned items, we will send the replaced ones back as soon as possible.

5.Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts.

Contact Me:

If you have any question, please contact us via Trademanager.
