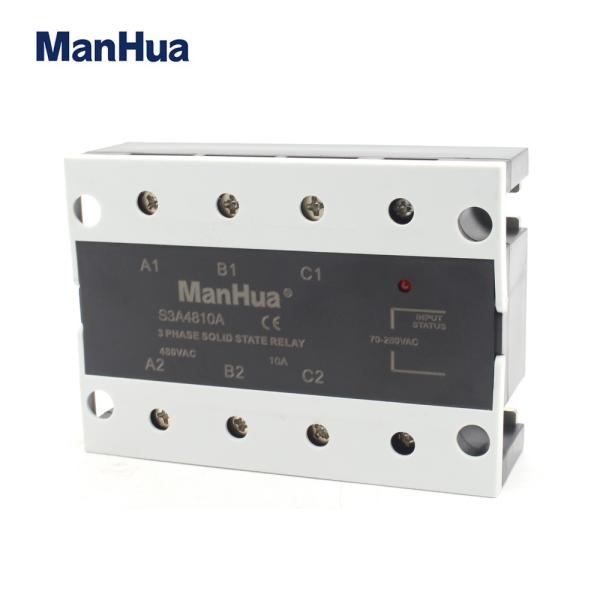

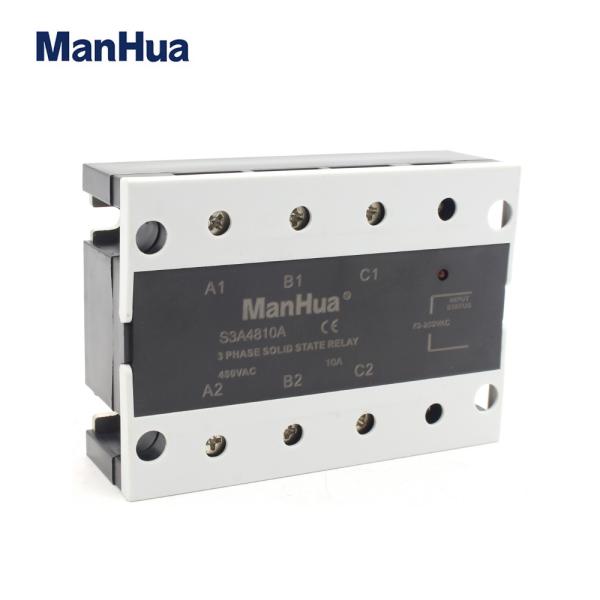

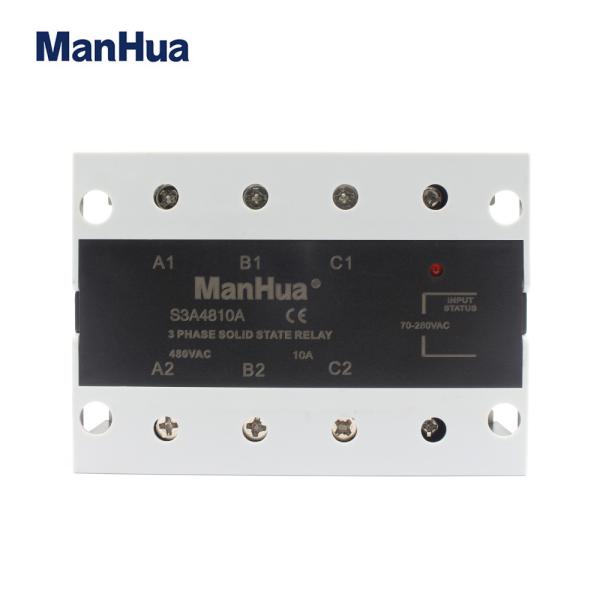

S3A4810A/S3A4825A/S3A4840A/S3A4860A Solid state relay three phase SSR 3P Series AC-AC 10A/25A/40A/60A Control Voltage 70-280VA

Power Source: AC Voltage: 480V
is_customized: Yes Usage: General Purpose
Model Number: S3A4810A/S3A4825A/S3A4840A/S3A4860A Contact Load: Low Power
Protect Feature: Sealed Theory: Solid State Relay
Brand Name: ManHua Load Voltage: 480VA
CInput Control Voltage: 70-280VA Cindicator: LED
Ambient Temperature: -30~+75℃ Off Leakage Current: ≤10mA
On-off Time: ≤10ms Request quotation

ManHua Solid state relay three phase SSR 3P Series AC-AC 10A/25A/40A/60A Control Voltage 70-280VAC

11

Specification:

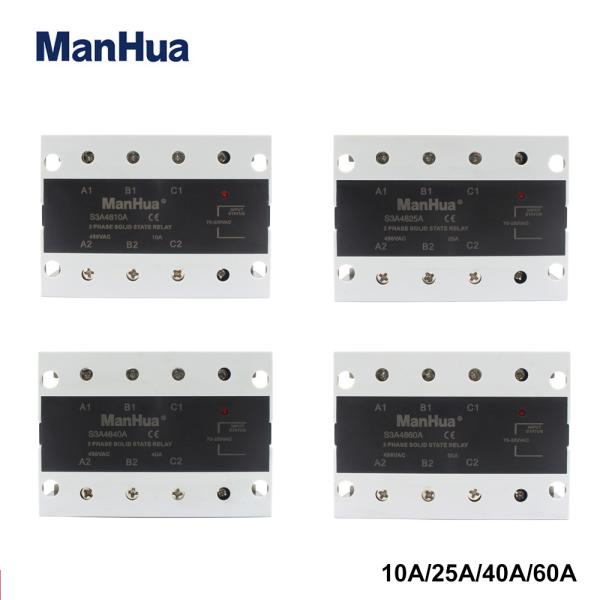

Load Current:10A/25A/40A/60A

Load Voltage:480VAC

Control Voltage:70-280VAC

On voltage:≤2VAC

Off Leakage Current:≤10mA

On-off Time:≤10ms

Dielectric Strength:2500VAC

Insulation Resistance:1000M/500VDC

Ambient Temperature:-30~+75℃

The work instructions:LED



Features:

No contact, no noise, no spark,wide work voltage range, quick and stable reaction,high electromagnetic compatibility,excellent heat-sink, anti-vibration,explosion-proof, long lasting usage.



Application:

With a switch no spark, no noise,high switching speed,anti-corrosion,moisture-proof,anti-vibration,long life.high reliability,electromagnetic compatibility and other characteristics.It can be widely used in aerospace,marine,household appliances,machine tools,telecommunications,automobile,mining,etc.automation and control area.
