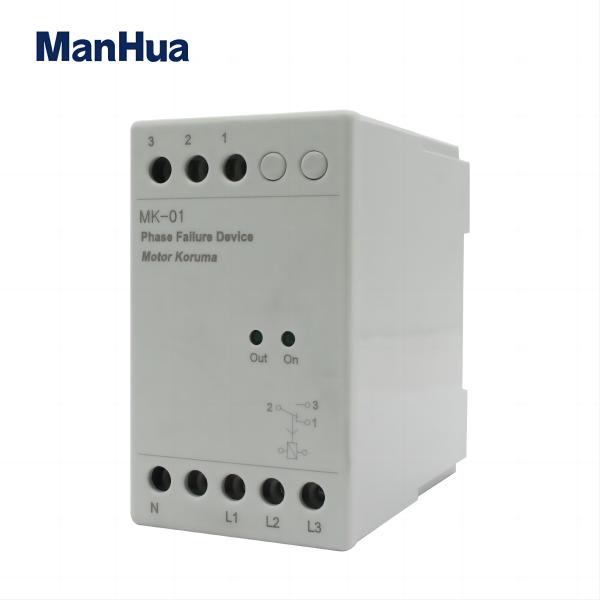

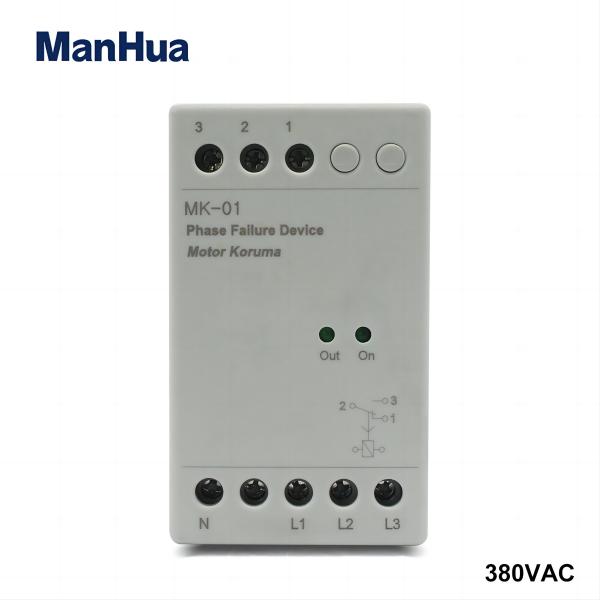

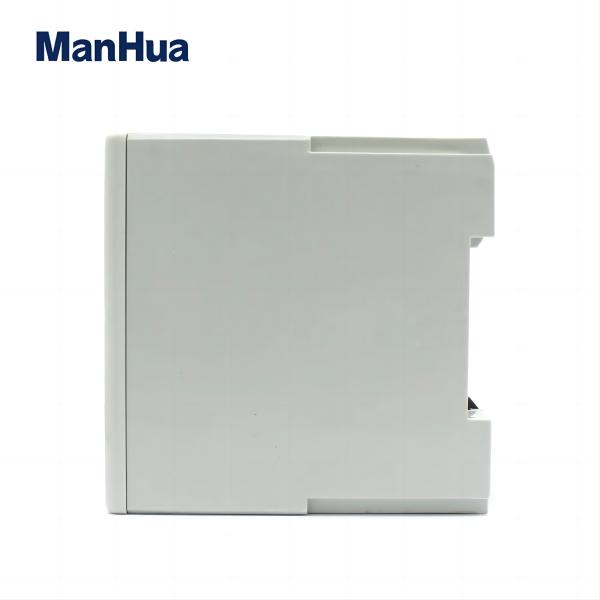

Manhua 3 Phase and neutral 230VAC, protect motor from phase failure and voltage unbalance MK-01 Phase Failure Device

Description:

One of the common faults faced in industrial plants is over-heating and burning of 3 phase motors due to the phase failure.“Thermicmagnetic device”which is an essential element in motor protection is generally too slow due to both its electro-mechanical structure and the use of high current setting range to assure demarrage without tripping.Being designed to eliminate the above disadvantages,MK-01 Phase Failure Devices react within 0.2 sec.(fixed) against the following faults and take the motor out of service.

Technical data:

Rated voltage:3 Phase and Neutral 230VAC

                         4 Wire star connection

Operating range:(0.9-1.1)×Un

Rated frequency:50/60Hz

Output contacts:1 C/O with,5A,1250VA

                              1 C/O with,8A,2000VA

Warning led:Green LED:Normally ON(turns OFF on Faults)

Tripping time:0.2s

Ambient temperature:-5℃;+50℃

Protection class:IP20

Installation:Surface mounting or on the mounting rails

Dimension:

Connection diagram :
